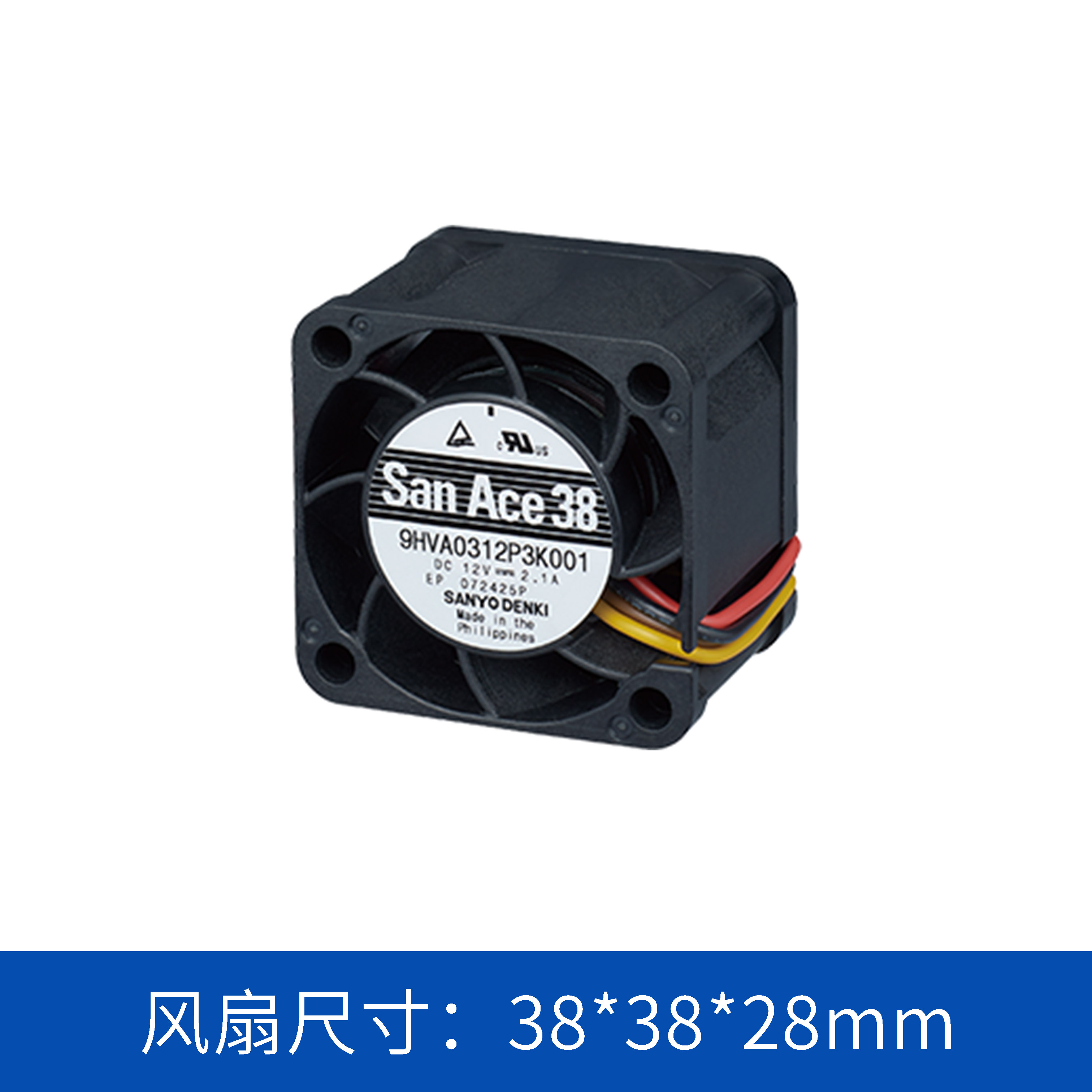

San Ace 38 DC Cooling Fan – Model 9HVA0312P3K001
1. Product Overview (Short Intro)
Place this right under the product title and price.
The SANYO DENKI San Ace 38 (Model 9HVA0312P3K001) is a high-performance, compact DC cooling fan designed for demanding industrial applications. Featuring a robust 38mm x 28mm frame, this fan delivers exceptional airflow and static pressure while maintaining low noise levels. Equipped with PWM (Pulse Width Modulation) control and a pulse sensor, it offers precise speed regulation and real-time rotation monitoring, making it ideal for telecommunications equipment, medical devices, and compact industrial machinery where reliability is critical.
2. Key Features & Benefits (Bullet Points)
Highlight why customers should choose this specific model.
-
High Airflow & Pressure: Optimized blade design ensures maximum cooling efficiency in compact spaces.
-
PWM Speed Control: Allows precise speed adjustment from low to high via a 4-wire interface, reducing power consumption and noise when full speed isn't needed.
-
Pulse Sensor Output: Provides a tachometer signal for real-time RPM monitoring and failure detection systems.
-
Industrial Grade Reliability: Built by SANYO DENKI with high-quality bearings for extended operational life (up to 70,000+ hours at 40°C).
-
Global Compliance: Fully compliant with RoHS, UL, CE, and TÜV safety standards.
-
Low Noise Operation: Engineered for quiet performance, suitable for noise-sensitive environments.
-
Secure Locking: Includes a locking mechanism to prevent accidental disconnection in vibrating environments.
3. Technical Specifications (Data Table)
This is the most important section for engineers. Ensure accuracy.
|
Parameter
|
Specification
|
|
Model Number
|
9HVA0312P3K001
|
|
Series
|
San Ace 38 (9HVA Series)
|
|
Manufacturer
|
SANYO DENKI Co., Ltd.
|
|
Frame Size
|
38 mm x 38 mm
|
|
Thickness
|
28 mm
|
|
Rated Voltage
|
12 VDC
|
|
Operating Voltage Range
|
10.2 ~ 13.8 VDC
|
|
Rated Current
|
0.16 A (Max)
|
|
Input Power
|
1.92 W (Max)
|
|
Rated Speed
|
11,500 min⁻¹ (RPM)
|
|
Max. Airflow
|
0.91 m³/min (32.1 CFM)
|
|
Max. Static Pressure
|
1,050 Pa (4.22 inchH₂O)
|
|
Noise Level
|
49 dB(A)
|
|
Bearing Type
|
Ball Bearing
|
|
Expected Life
|
70,000 hours (at 40°C) / 40,000 hours (at 60°C)
|
|
Functions
|
PWM Control, Pulse Sensor, Locked Rotor Detection
|
|
Wire Configuration
|
4-Wire (Red: +, Black: -, Yellow: Pulse, Blue: PWM)
|
|
Connector Type
|
Standard Lead Wire with Connector (Check datasheet for specific type)
|
|
Operating Temp.
|
-10°C to +70°C
|
|
Storage Temp.
|
-25°C to +70°C
|
|
Weight
|
Approx. 53 g
|
|
Material
|
Frame: Plastic / Impeller: Plastic
|
|
Certifications
|
UL, CE, TÜV, RoHS
|
(Note: Specifications are subject to change without notice. Please refer to the official datasheet for the latest values.)
4. Applications
Help users visualize where they can use this fan.
The 9HVA0312P3K001 is widely used in:
-
Telecommunications: Base stations, routers, and switches.
-
Industrial Automation: PLCs, inverters, and control panels.
-
Medical Equipment: Diagnostic imaging devices and analytical instruments.
-
Office Equipment: High-performance servers and printers.
-
Audio/Visual Equipment: Projection systems and broadcasting gear.
5. Dimensions & Wiring Diagram
(Insert Image Placeholder here)
[Image: Dimensional Drawing of 9HVA0312P3K001]
[Image: Wiring Connection Diagram showing Red/Black/Yellow/Blue wires]
Wiring Guide:
-
Red: +V (Power Supply)
-
Black: -V (Ground)
-
Yellow: FG (Pulse Sensor Output)
-
Blue: PWM (Speed Control Input)
