San Ace 40 DC Fan Model 109P0424B3013 Product Introduction
1. Product Overview
The 109P0424B3013 belongs to Sanyo Denki San Ace 40 series DC axial cooling fan, standard dimension 40mm×40mm×28mm, 24V rated voltage design. This industrial grade fan adopts ribbed plastic frame structure, built-in pulse sensor for real-time speed feedback, no PWM control function, low power consumption only 3.12W, stable operation under wide voltage range 12V to 26.4V. It passes UL, CSA, EN and RoHS industry certifications, with ultra long service life, suitable for narrow space industrial heat dissipation scenarios such as small servers, power inverters, communication control cabinets and precision instruments.

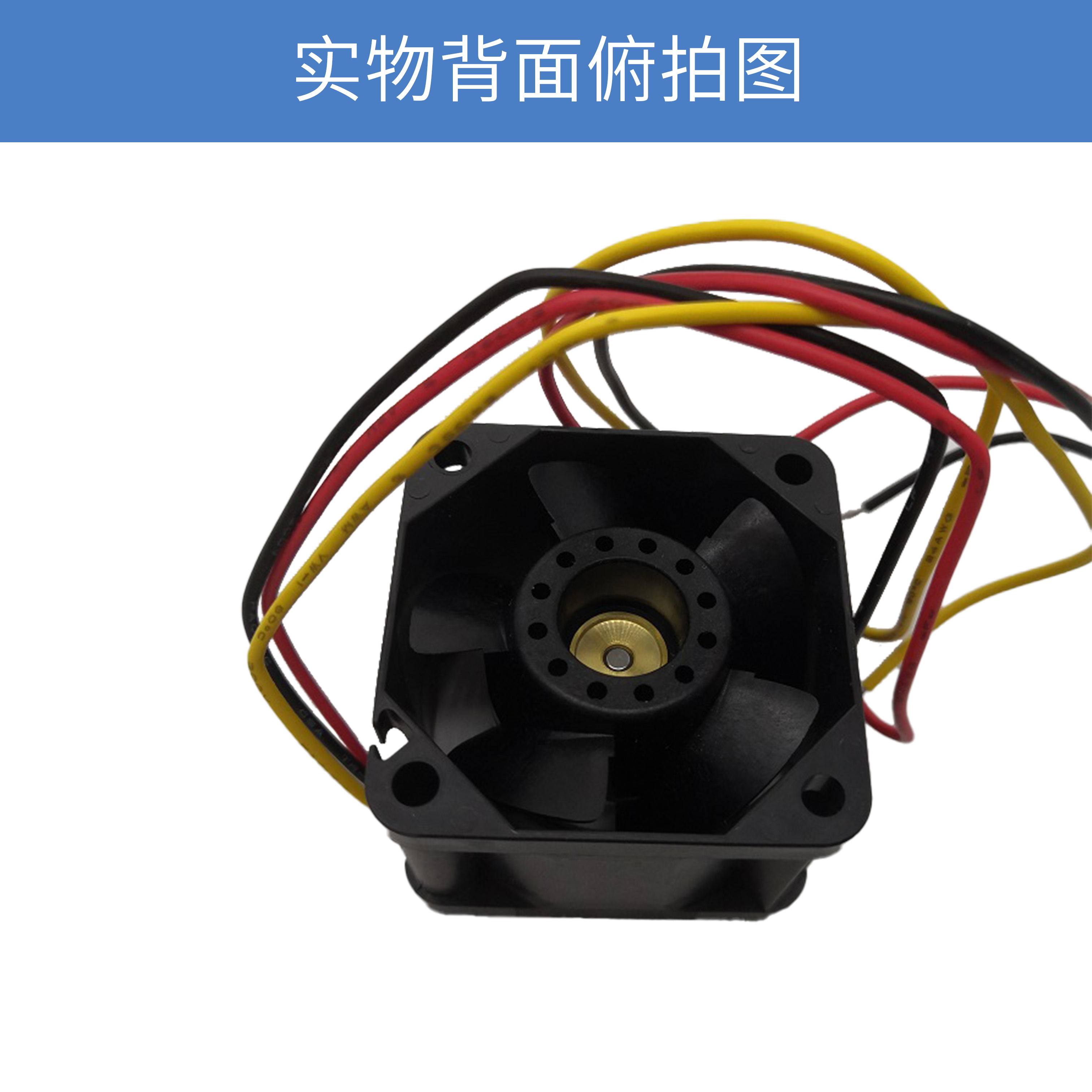

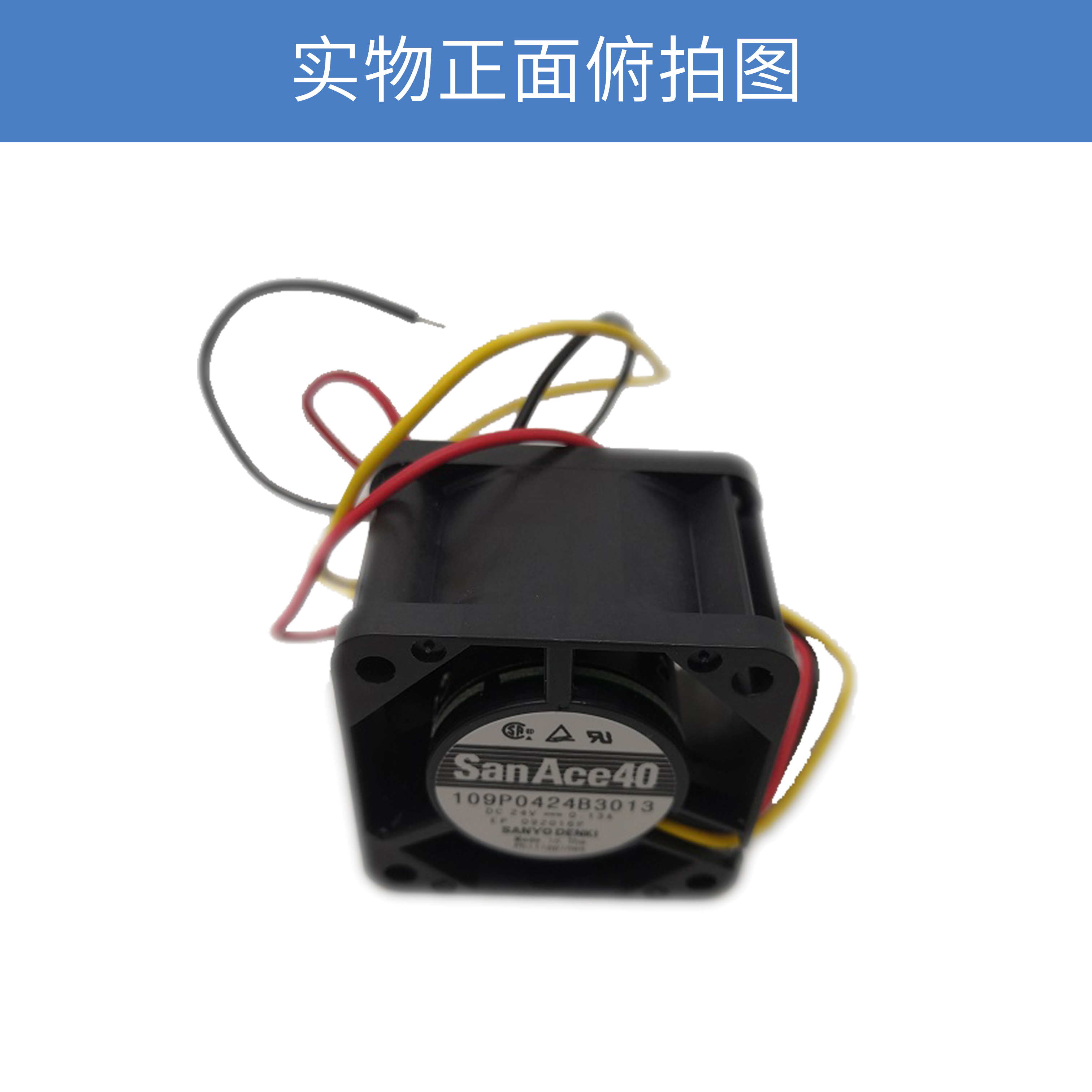

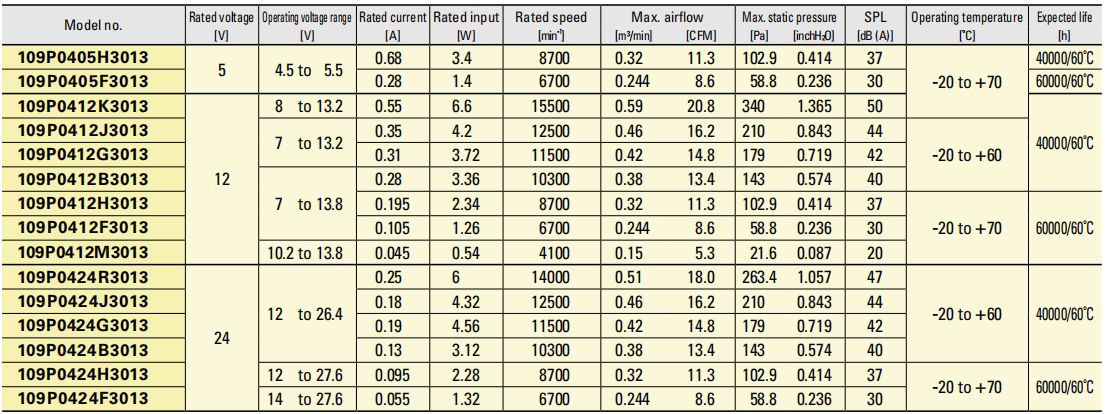

2. Complete Technical Parameter Table
|
Parameter Item
|
Spec Value
|
Parameter Item
|
Spec Value
|
|
Model No.
|
109P0424B3013
|
Frame Size
|
40mm
|
|
Frame Thickness
|
28mm
|
Frame Material
|
Plastic
|
|
Rated Voltage
|
24V
|
Operating Voltage Range
|
12V~26.4V
|
|
Rated Current
|
0.13A
|
Rated Input Power
|
3.12W
|
|
Rated Speed
|
10300 min-1
|
Max Airflow
|
0.38 m3/min
|
|
Max Airflow CFM
|
13.4
|
Max Static Pressure
|
143 Pa
|
|
Max Static Pressure inchH2O
|
0.574
|
SPL Noise Level
|
40 dB(A)
|
|
Operating Temperature
|
-20℃ ~ +60℃
|
Expected Service Life
|
40000h at 60℃,70000h at 40℃
|
|
Net Mass
|
52g
|
Sensor Type
|
Pulse sensor
|
|
PWM Control Function
|
No
|
Ribbed Structure
|
Yes
|

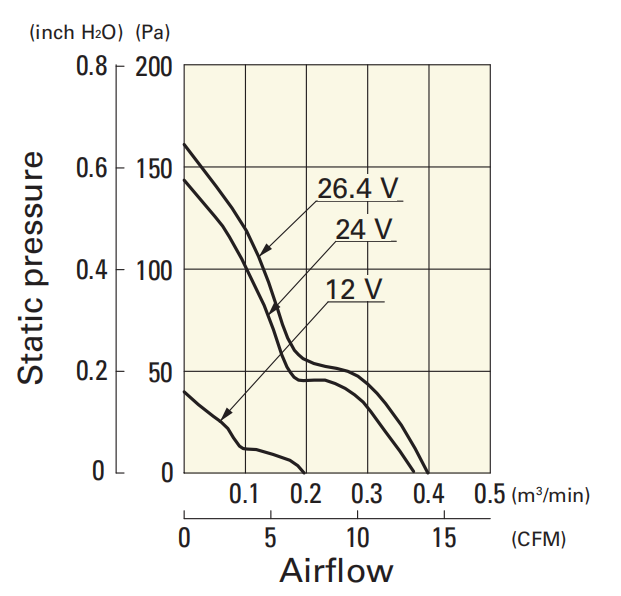

3. Core Performance Advantages Table
|
Advantage Module
|
Detailed Description
|
Application Benefit
|
|
Wide Voltage Adaptation
|
Support 12V to 26.4V input, stable operation under voltage fluctuation
|
Avoid fan stall caused by power supply voltage deviation, adapt unstable industrial power supply
|
|
Pulse Speed Feedback Sensor
|
Built-in pulse signal output, real-time upload fan rotation speed signal to host system
|
Equipment monitoring system can judge fan abnormal stop, realize equipment overheating protection
|
|
High Static Pressure Performance
|
Maximum static pressure reaches 143Pa, excellent air penetration capacity
|
Suitable for dense heat sink, multi-layer filter mesh blocked heat dissipation environment
|
|
Long Service Life Design
|
40000 hours service life under 60℃ continuous working condition, durable bearing structure
|
Reduce equipment later maintenance frequency, lower after-sales cost of industrial equipment
|
|
Full International Certification
|
UL ratings, CSA standards, EN standards, RoHS directive four major certifications
|
Meet export standards of Europe, America and other regions, no customs clearance certification risk
|
|
Ribbed Reinforced Frame
|
Frame with ribbed design, improve overall structural strength
|
Anti-vibration during long-term operation, avoid frame deformation under equipment vibration environment
|
4. Applicable Industry Scenarios Table
|
Industry Field
|
Specific Equipment Matching
|
Core Demand Matched With 109P0424B3013
|
|
Server & Data Storage
|
1U mini server, small storage chassis
|
Small size 4028 installation space, pulse speed monitoring for server safety control
|
|
Industrial Automation
|
Servo driver, frequency converter, PLC control box
|
Wide voltage range, high static pressure for internal dense component heat dissipation
|
|
Communication Equipment
|
Industrial switch, signal transmission module
|
Low noise 40dB(A), wide temperature range adapt to outdoor communication cabinet
|
|
Medical Precision Instrument
|
Small medical detection equipment, analytical instrument
|
RoHS environmental protection certification, stable low power operation, no electromagnetic interference
|
|
New Energy Power Supply
|
Mini DC power module, charging control unit
|
High temperature resistance up to 60℃, long service life for continuous power supply operation
|

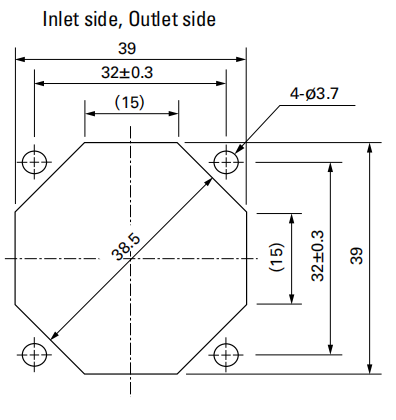

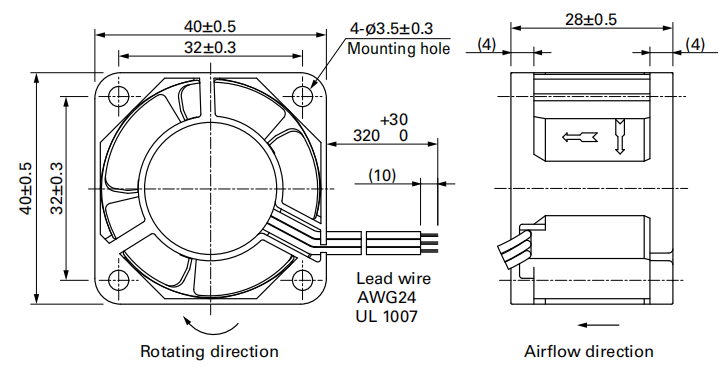

5. Product Structure & Certification Explanation
-
Frame structure: Plastic ribbed frame, effectively enhance structural rigidity, reduce resonance noise during high speed operation at 10300rpm.
-
Sensor configuration: Single pulse sensor design, can transmit real-time rotation speed signal to upper computer, convenient for equipment fault self-check function development.
-
Electrical characteristic: No PWM speed regulation function, fixed speed operation mode, simple wiring design, reduce circuit matching difficulty.
-
Certification compliance: All raw materials meet RoHS environmental protection standard, electrical safety performance meets UL CSA EN international safety standards, support global export sales.
6. Service Life Test Standard
The expected service life data of 109P0424B3013 is obtained through continuous aging test under fixed temperature environment. The fan can run continuously for 40000 hours under 60℃ working temperature, and extend to 70000 hours service life when working at 40℃ low temperature environment, which far exceeds the average service life of ordinary civil cooling fans.
∷
