Product Content: SANYO DENKI San Ace 38 Low Power (Model 9GA0312P3K001)
Product Title

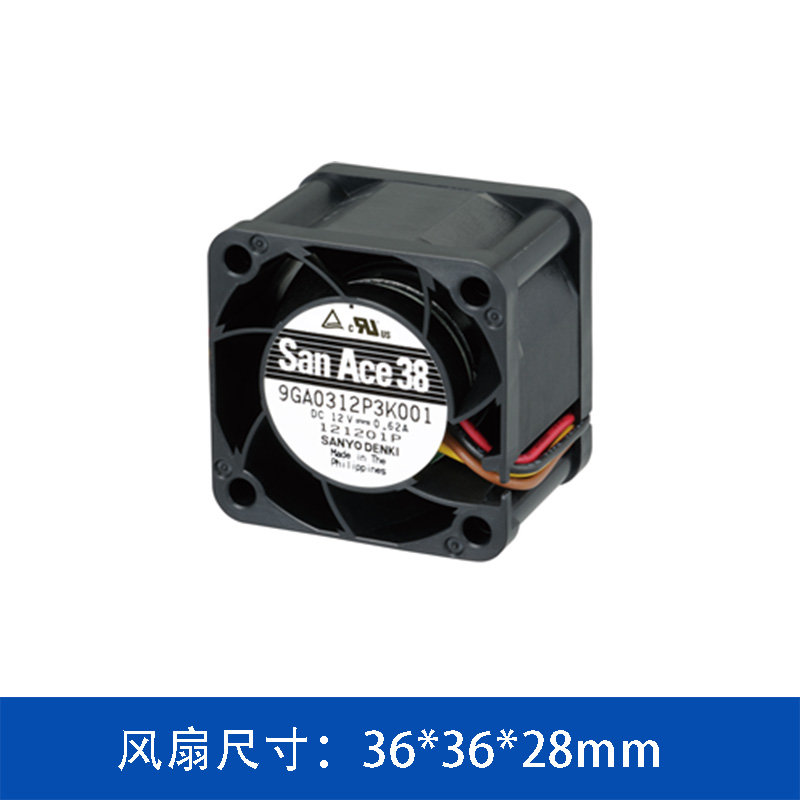

SANYO DENKI San Ace 38 Low-Power DC Fan – 9GA0312P3K001 | 38x28mm, 12V, 7.4W, 25,000 RPM, Quiet Operation, PWM & Pulse Sensor
Product Overview
The SANYO DENKI 9GA0312P3K001 is a specialized member of the San Ace 38 series engineered for applications where energy efficiency and acoustic comfort are paramount. Operating at a moderate speed of 25,000 RPM, it consumes only 7.4 Watts while delivering 0.6 m³/min (21.2 CFM) airflow and 800 Pa (3.21 inchH₂O) static pressure — sufficient for general ventilation in enclosed electronics without excessive heat or noise generation.
Designed with a ribbed plastic frame for structural stability and equipped with PWM speed control and a pulse sensor, this fan enables intelligent thermal management and real-time monitoring. Its sound level of 59 dB(A) makes it one of the quietest options in its class, ideal for office environments, medical devices, and consumer-facing equipment.
Certified as an Eco Product by SANYO DENKI and compliant with global safety standards, it supports sustainable design goals without compromising reliability.
Key Features
-
Ultra-Low Power Consumption: Only 7.4W rated input — reduces system power budget and heat output.
-
Quiet Operation: Sound pressure level of 59 dB(A) — suitable for noise-sensitive environments like offices or clinics.
-
Energy-Efficient Design: Optimized motor and impeller geometry maximize airflow per watt consumed.
-
Smart Control Interface: PWM allows dynamic speed adjustment; pulse sensor provides RPM feedback for diagnostics.
-
Global Compliance: Meets UL, CSA, EN, RoHS standards; officially recognized as an Eco Product.
-
Durable Construction: Ribbed plastic frame enhances rigidity and vibration resistance.
-
Wide Temperature Range: Operates reliably from -20°C to +70°C.
-
Compact Form Factor: Standard 38mm x 38mm x 28mm size fits most existing designs.
Technical Specifications
|
Parameter
|
Specification
|
|
Model Number
|
9GA0312P3K001
|
|
Series
|
San Ace 38 Low Power (9GA Series)
|
|
Manufacturer
|
SANYO DENKI Co., Ltd.
|
|
Frame Size
|
38 mm x 38 mm
|
|
Thickness
|
28 mm
|
|
Rated Voltage
|
12 VDC
|
|
Operating Voltage Range
|
10.8 ~ 13.2 VDC
|
|
Rated Current
|
0.62 A
|
|
Rated Input Power
|
7.4 W ← Core Differentiator
|
|
Rated Speed
|
25,000 min⁻¹ (RPM)
|
|
Maximum Airflow
|
0.6 m³/min (21.2 CFM)
|
|
Maximum Static Pressure
|
800 Pa (3.21 inchH₂O)
|
|
Sound Pressure Level (SPL)
|
59.0 dB(A) ← Among lowest in class
|
|
Bearing System
|
Ball Bearing
|
|
Expected Life
|
70,000 hours (at 40°C) / 40,000 hours (at 60°C)
|
|
Operating Temperature
|
-20°C to +70°C
|
|
Storage Temperature
|
-25°C to +70°C
|
|
Weight
|
Approx. 52 g
|
|
Material
|
Frame: Plastic / Impeller: Plastic
|
|
Functions
|
PWM Control, Pulse Sensor, Locked Rotor Detection
|
|
Wire Color Code
|
Red (+), Black (-), Yellow (Pulse), Blue (PWM)
|
|
Certifications
|
UL, CSA, EN, RoHS, Eco Product
|
|
Ribbed
|
Yes
|
Applications
This low-power, quiet fan is optimized for:
-
Office Equipment: Printers, scanners, copiers, and docking stations requiring silent operation.
-
Medical Devices: Patient monitors, infusion pumps, and diagnostic tools where noise must be minimized.
-
Consumer Electronics: High-end audio gear, set-top boxes, and smart home hubs.
-
Green Technology Systems: Solar inverters, battery management units, and IoT gateways prioritizing energy savings.
-
Retail & Hospitality Kiosks: Interactive displays and POS terminals needing unobtrusive cooling.
-
Educational & Lab Instruments: Microscopes, spectrometers, and teaching aids used in quiet settings.
Wiring & Connection Guide
Standard 4-wire interface:
-
Red Wire: +12V Power Input
-
Black Wire: Ground (GND)
-
Yellow Wire: Pulse Sensor Output (Open collector, 2 pulses per revolution)
-
Blue Wire: PWM Control Input (Typical frequency: 25kHz)
Installation Note: For optimal energy savings, configure PWM duty cycle based on actual thermal load. Leaving PWM pin open may result in full-speed operation depending on controller logic.
Why Choose This Model?
-
Lowest Power Draw in Class: At just 7.4W, it significantly reduces overall system energy consumption.
-
Whisper-Quiet Performance: 59 dB(A) ensures user comfort in shared or sensitive spaces.
-
Eco-Certified Sustainability: Officially designated as an Eco Product by SANYO DENKI.
-
Intelligent Thermal Management: PWM + pulse sensor enable adaptive cooling and remote health tracking.
-
Trusted Reliability: Backed by decades of SANYO DENKI engineering excellence and global certifications.
∷
