How to Select Cooling Fans for Outdoor Digital Signage? San Ace 9WPA IP68 Splash Proof Axial Fan Solution Explained

Outdoor digital signage systems, such as advertising displays, transportation information boards, and public information screens, operate continuously in harsh outdoor environments. Unlike indoor equipment, they are exposed to direct sunlight, rain, dust, humidity, and significant temperature fluctuations.

Under these conditions, the reliability of the cooling system becomes one of the key factors affecting long-term equipment stability. Among various thermal management solutions, the SANYO DENKI San Ace 9WPA IP68 Splash Proof Axial Fan from SANYO DENKI has become a widely adopted solution for outdoor applications requiring high durability and environmental resistance.

This article explains how to properly select cooling fans for outdoor digital signage and why IP68-rated Splash Proof Fans are increasingly important in modern outdoor electronic systems.

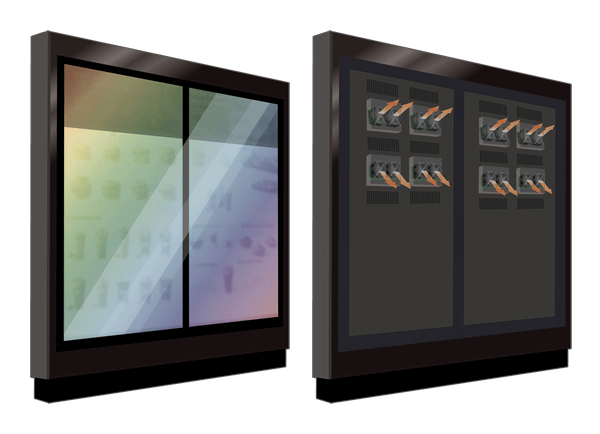

Why Outdoor Digital Signage Requires Reliable Cooling

Outdoor digital signage is not simply a display device. Internally, it integrates multiple heat-generating components, including:

• High-brightness LED modules
• Power supply units
• Industrial control boards
• Communication modules

At the same time, these systems must withstand:

• Strong solar radiation
• Rainwater exposure
• Dust accumulation
• Condensation caused by humidity and temperature differences
• Continuous 24/7 operation

If the cooling system is not properly designed, internal temperatures can rise rapidly, leading to shortened component lifespan, unstable operation, and increased maintenance costs.

Why IP Protection Rating Matters

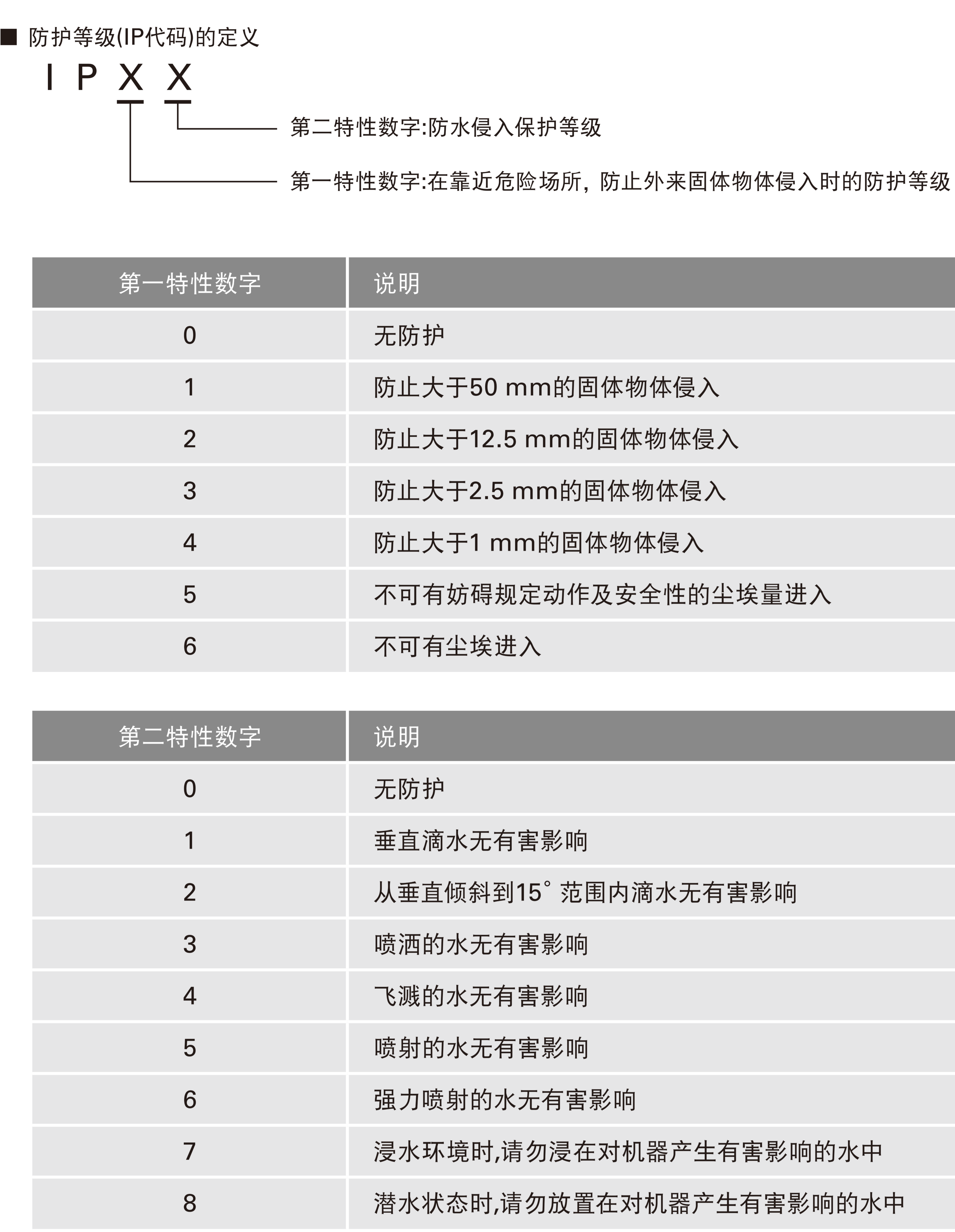

The IP (Ingress Protection) rating defined by IEC 60529 evaluates protection against dust and water intrusion.

For outdoor digital signage, IP68 Splash Proof Fans provide significantly better reliability in high-humidity and rain-prone environments.

 What Is a Splash Proof Fan?

A Splash Proof Fan is specially designed to operate safely in environments exposed to water, moisture, and dust.

In the San Ace 9WPA IP68 Splash Proof Axial Fan series:

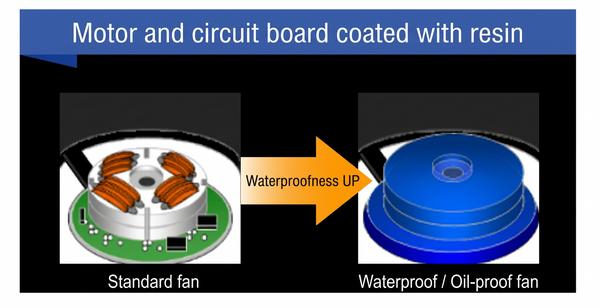

• Motor coils and electronic circuits are resin-coated
• Electrical components are sealed against water and dust intrusion
• The fan structure is optimized for harsh outdoor conditions

It is important to note that the IP rating applies to live electrical components such as motor coils and electronic parts. Mechanical parts like bearings and frames may still require appropriate environmental consideration during long-term operation.

Key Features of San Ace 9WPA Splash Proof Fans

4.1 IP68 Waterproof and Dustproof Performance

The fan achieves IP68-level protection, making it suitable for outdoor systems exposed to rain, moisture, and airborne contaminants.

4.2 Long Service Life

Depending on operating conditions, the fan series supports extremely long operational life, reducing maintenance frequency and improving equipment reliability.

4.3 PWM Speed Control Function

PWM-compatible models allow intelligent fan speed adjustment according to thermal load, helping reduce:

• Power consumption
• Acoustic noise
• Unnecessary full-speed operation

4.4 High Static Pressure Design

Compared with conventional models, the new 9WPA series offers improved static pressure performance, which is critical for compact outdoor signage systems with restricted airflow paths.

120×120x25mm San Ace 9WPA Model Comparison

Below are several commonly used models for outdoor digital signage applications:

Engineering Considerations for Fan Selection

In actual outdoor signage projects, engineers usually evaluate the following factors when selecting a Splash Proof Fan.

6.1 System Thermal Load

Larger displays and higher brightness levels generate more heat and require higher airflow capacity.

6.2 Internal Airflow Resistance

Compact cabinet structures increase airflow resistance, making static pressure performance more important than airflow alone.

6.3 Environmental Conditions

6.4 Noise Requirements

For transportation hubs, shopping malls, and public advertising systems, low-noise operation is often an important requirement.

PWM-controlled models can effectively balance cooling performance and acoustic optimization.

Typical Outdoor Digital Signage Applications

Outdoor Advertising Displays

• Continuous operation
• High thermal load
• Recommended: medium-to-high airflow IP68 Splash Proof Fans

Transportation Information Displays

• Long operating hours
• Stable low-noise cooling required
• Recommended: PWM-controlled models

Smart Self-Service Terminals

• Compact internal structures
• Higher airflow resistance
• Recommended: high static pressure models

Thermal management for outdoor digital signage is not only about airflow volume. Environmental durability, protection capability, and long-term reliability are equally important.

The San Ace 9WPA IP68 Splash Proof Axial Fan combines:

• IP68 protection performance
• High static pressure capability
• Long service life
• Intelligent PWM speed control

These features make it a reliable cooling solution for modern outdoor electronic systems, including digital signage, EV chargers, PV inverters, and industrial outdoor equipment.

For engineers and system designers, selecting the appropriate Splash Proof Fan is essential for ensuring stable operation, minimizing maintenance costs, and improving overall equipment reliability.
