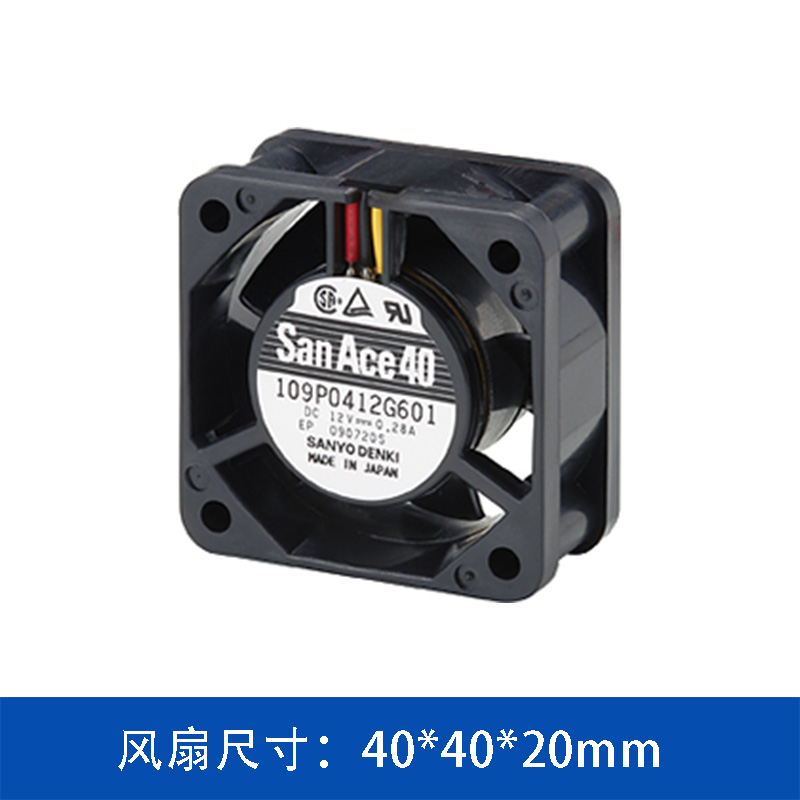

4020 24V DC COOLING FAN

109P0424F601

Brand: SanAce (Japan sanyodenki)
Size: 40x40x20mm
Characteristics: Low power consumption, low noise, long lifespan
Signal line: 3-wire
Product description: San Ace 40 DC cooling fan (109P0424F601) with 24V rating, 40x40x20mm size, 6.5CFM max airflow, low noise. Ideal for server, industrial equipment cooling. View specs & datasheet.
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承认书/规格书	型号	额定定压	电压范围	额定电流	额定功率	转速	最大风量		最大风压			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	㎥/min	CFM	Pa	mmH2O	INH2O	DB-A
	109P0424F601	24	14~27.6	0.06	1.44	6500	0.183	6.5	45.1	4.5974	0.181	28

PRODUCT PRESENTATION

San Ace 40 DC Cooling Fan (Model: 109P0424F601)

The San Ace 40 109P0424F601 is a high - reliability DC axial cooling fan designed for compact electronic devices requiring efficient thermal management. With a 40x40x20mm frame and 24VDC operation, it delivers optimal airflow while maintaining low noise, making it ideal for space - constrained applications.

Key Features

Compact & Lightweight: 40mm frame size (20mm thickness) with a mass of only 45g, suitable for small - form - factor equipment.
High - Efficiency Performance: 6500min⁻¹ rated speed provides a maximum airflow of 0.183m³/min (6.5CFM) and static pressure of 45.1Pa (0.181inchH₂O).
Wide Operating Range: Functions reliably in temperatures from -20°C to +70°C, with an operating voltage range of 14–27.6VDC.
Long Lifespan: Expected life of 60,000 hours at 60°C (90,000 hours at 40°C), ensuring long - term stability.
Pulse Sensor: Equipped with a pulse sensor for rotation detection, enabling easy monitoring of fan status.
Compliance: Meets UL, CSA, EN standards and RoHS directive for global market compatibility.

Technical Specifications

表格

Parameter	Specification
Model No.	109P0424F601
Frame Size (mm)	40 (thickness: 20mm)
Frame Material	Plastic
Rated Voltage (VDC)	24
Operating Voltage (VDC)	14–27.6
Rated Current (A)	0.06
Rated Input (W)	1.44
Rated Speed (min⁻¹)	6500
Max. Airflow (m³/min)	0.183 (6.5CFM)
Max. Static Pressure	45.1Pa (0.181inchH₂O)
Noise Level (dB(A))	28
Operating Temperature	-20°C to +70°C
Expected Life (hours)	60,000 (60°C) / 90,000 (40°C)
Sensor Type	Pulse Sensor
PWM Control	No
Ribbed Frame	Yes

Applications

Industrial Control Systems: Cooling for PLCs, motor drivers, and power supplies in harsh environments.
Servers & Networking Equipment: Thermal management for compact server racks, switches, and routers.
Medical Devices: Reliable cooling for diagnostic equipment and laboratory instruments.
Office Automation: Heat dissipation for printers, scanners, and POS terminals.
Telecommunications: Cooling for base station components and communication modules.

Why Choose San Ace 40?

SANYO DENKI’s San Ace 40 series combines precision engineering with durable materials to deliver consistent performance. The 109P0424F601’s plastic frame reduces weight without compromising strength, while its ribbed design enhances structural integrity. Whether for industrial, commercial, or medical use, this fan ensures efficient cooling with minimal maintenance.
