120x120x38mm Wide Temperature Range Fan

9GT1212P1S001

Brand: SanAce (Japan sanyodenki)
Size: 92x92x38mm
Characteristics: Wide Temperature Range Fan
Signal line: 4-wire PWM + FG
Product description: Sanyo Denki San Ace 120T model 9GT1212P1S001 wide temperature industrial fan, aluminum frame size 120×38mm, rated 12V DC with operating range 9.0–13.8V. Operating temperature from -40℃ to 85℃, built-i
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承认书/规格书	型号	额定定压	电压范围	额定电流	额定功率	转速	最大风量		最大风压			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	㎥/min	CFM	Pa	mmH2O	INH2O	DB-A
	9GT1212P1S001	12	10.2~-13.8	2.2	26.4	5600	6	211.8	270	27.432	1.08	58
暂无	9GT1224P1S001	24	18-27.6	1.1	26.4	5600	6	211.8	270	27.432	1.08	58

PRODUCT PRESENTATION

Product Overview

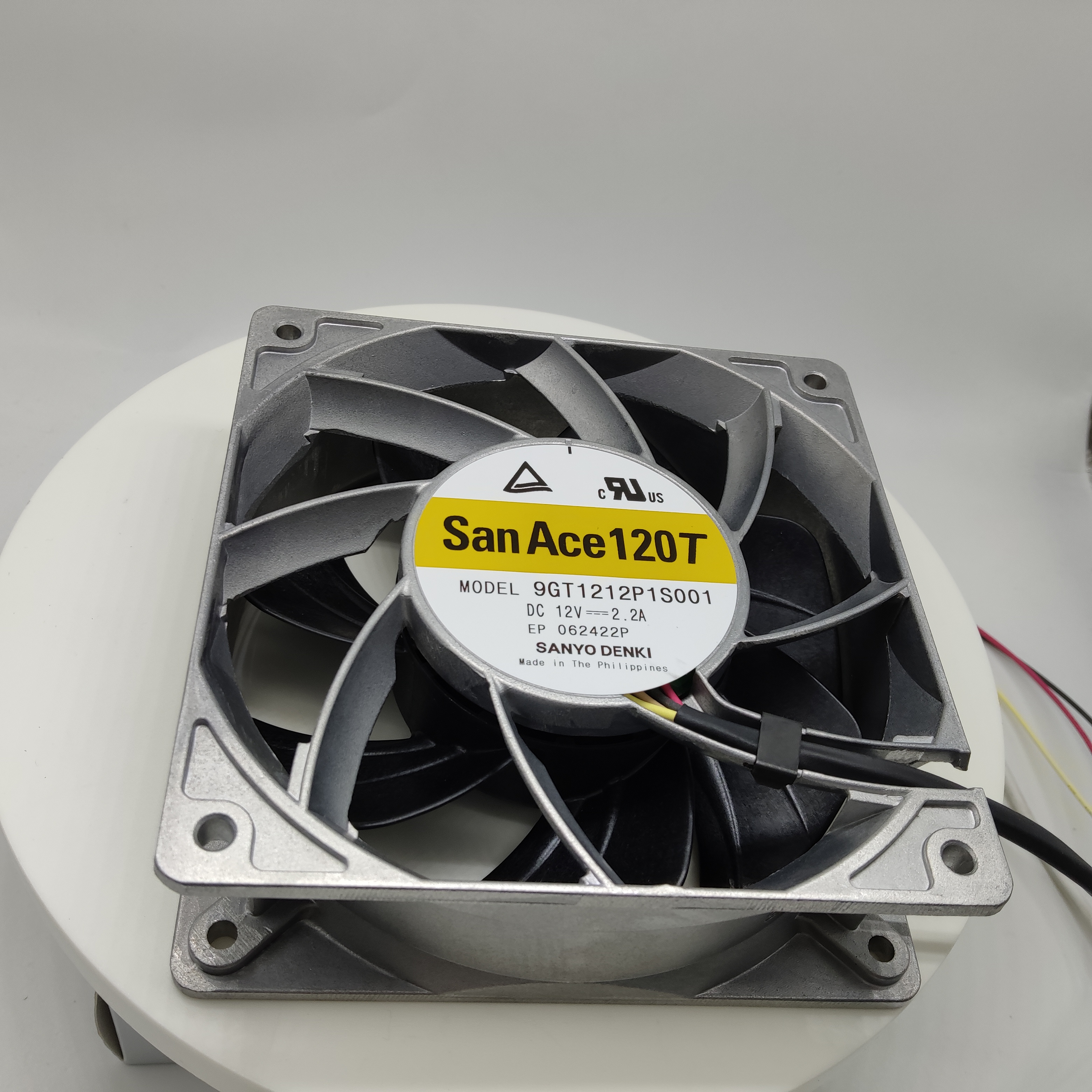

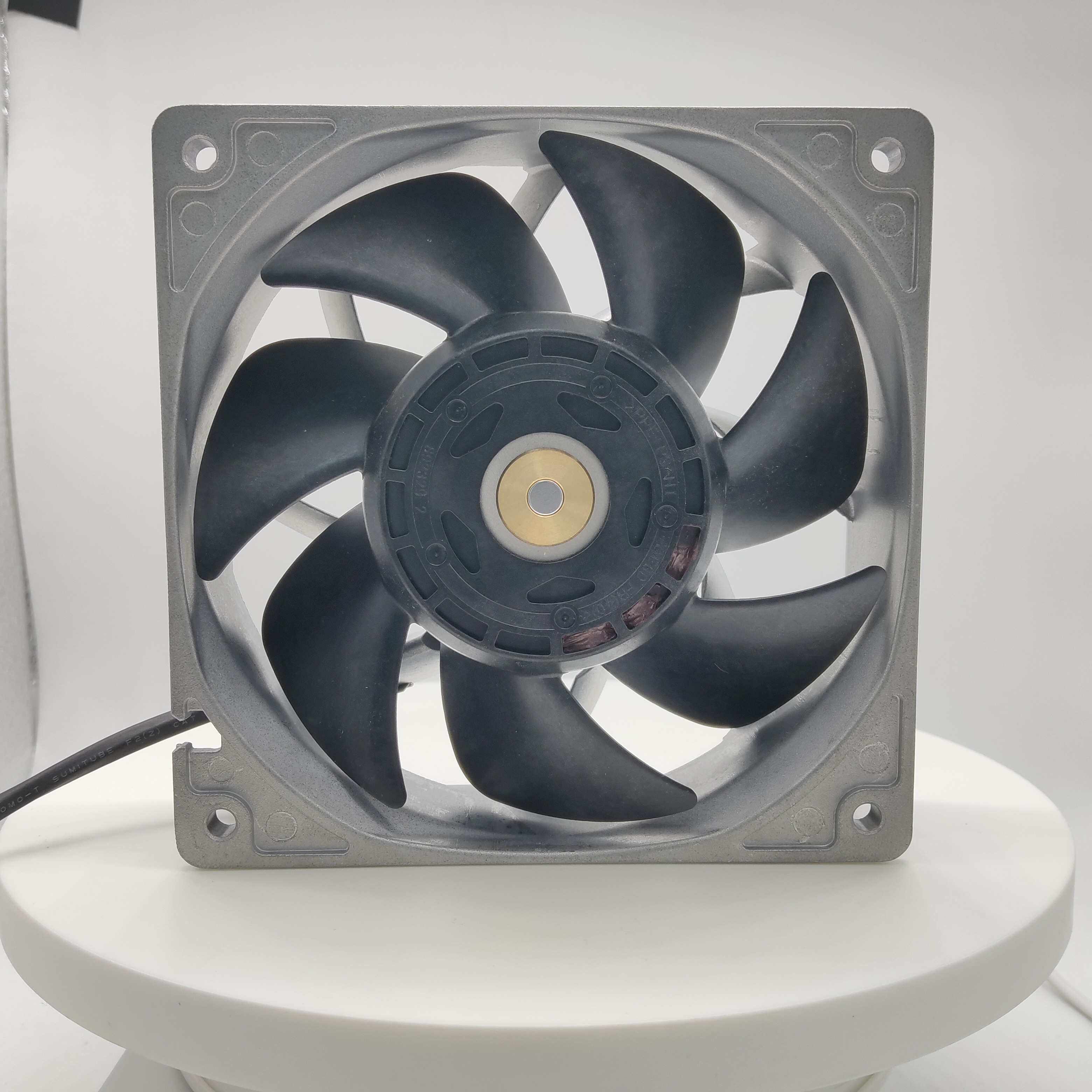

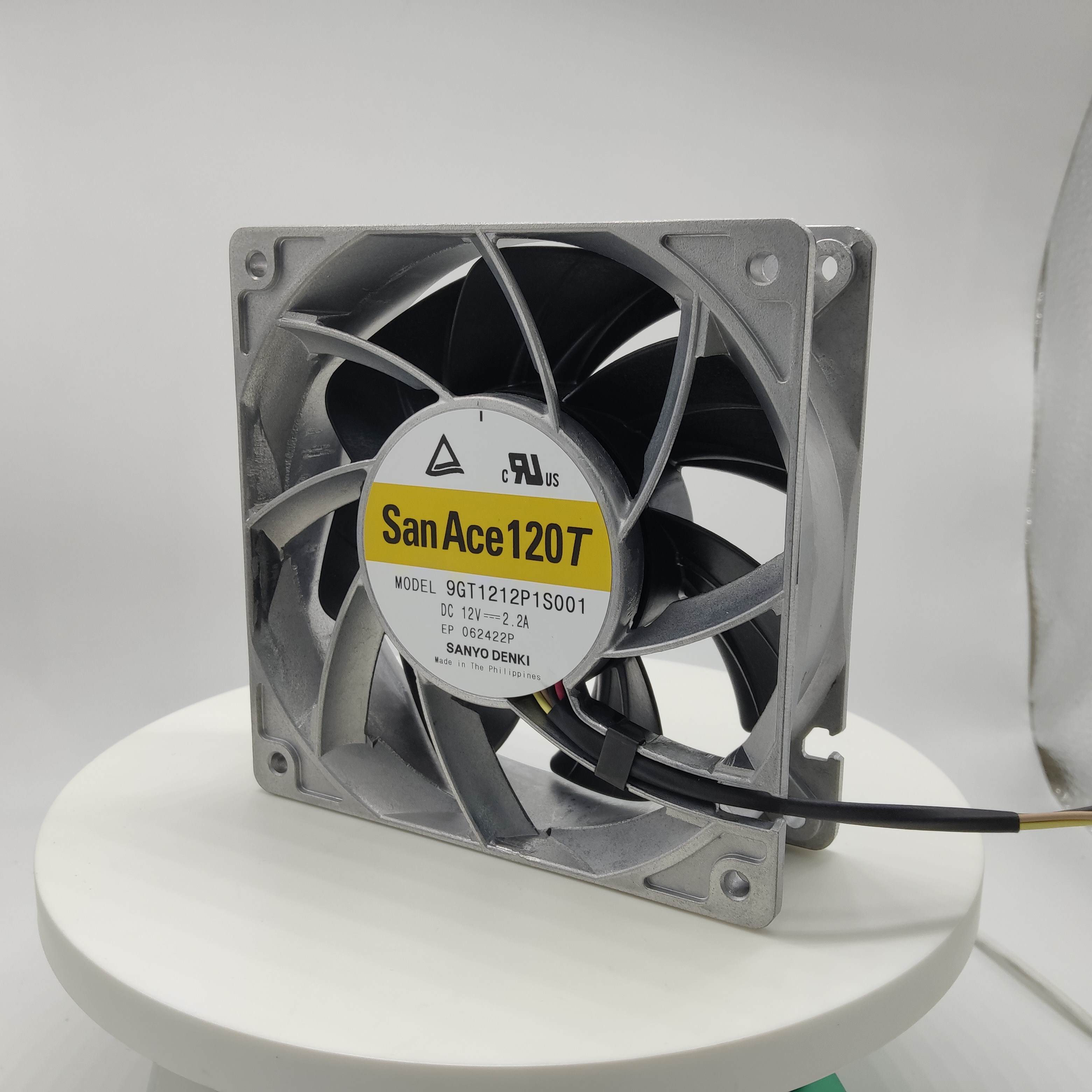

The San Ace 120T wide temperature range fan 9GT1212P1S001 is a high-performance DC cooling fan developed by SANYO DENKI, designed for extreme temperature industrial environments. With an all-aluminum 120×38mm frame, this 12V fan delivers strong airflow and high static pressure while supporting a wide working temperature span of -40℃ to +85℃, perfectly solving heat dissipation challenges for equipment operating in harsh cold or high-temperature scenarios.

Core Electrical & Performance Specs

Model: 9GT1212P1S001
Dimension: 120mm × 38mm aluminum frame
Rated Voltage: 12V DC; Operating Voltage Range: 9.0~13.8V
Rated Current: 2.2A; Rated Input Power: 26.4W
Rated Rotational Speed: 5600 min⁻¹
Maximum Airflow: 6.0 m³/min (211.8 CFM)
Max Static Pressure: 270 Pa (1.08 inchH2O)
Noise Level (SPL): 58 dB(A)
Weight: 420g

Functional Advantages

Ultra-wide temperature tolerance from -40℃ to 85℃, stable operation in frigid low-temperature and high-heat enclosed cabinets.
Built-in PWM control function, supports stepless speed regulation to balance cooling efficiency and energy consumption.
Equipped with pulse tachometer sensor, real-time fan speed feedback for equipment failure monitoring.
Durable service life: 40,000 hours at 85℃, 162,000 hours under 40℃ ambient temperature.
Full compliance certifications: UL ratings, CSA standards, EN standards and RoHS directive, meets global industrial equipment safety requirements.

Typical Application Scenarios

This San Ace 120T wide temp fan is widely applied to industrial control cabinets, outdoor communication equipment, AI server cooling, new energy power supply, transportation electronics, and other devices that demand reliable heat dissipation under extreme temperature conditions.
