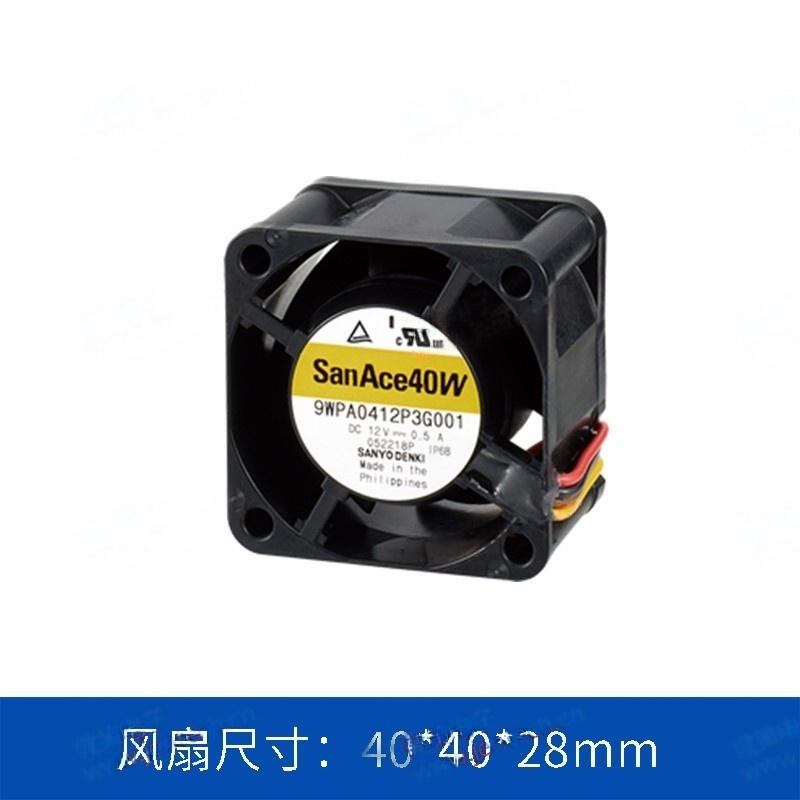

Sanyo Denki San Ace 40W 9WPA0424P3G0011 IP68 Splash-Proof PWM DC Fan
1. Introduction & Product Overview
The 9WPA0424P3G0011 is a rugged, high-performance splash-proof DC cooling fan from Sanyo Denki’s San Ace 40W series, purpose-built for thermal management in the harshest environments. Designed to meet IP68 standards, this 40×40×28 mm fan delivers powerful airflow and static pressure with PWM speed control, making it ideal for outdoor, industrial, and moisture-prone applications where reliability is non-negotiable.
Key design highlights include:
-
Compact 40mm form factor for space-constrained installations
-
24V DC operation with wide voltage tolerance
-
IP68 dust/water ingress protection
-
PWM speed control for optimized efficiency and noise
-
Pulse sensor output for system monitoring
2. Core Specifications
|
Parameter
|
Specification
|
|
Model Number
|
9WPA0424P3G0011
|
|
Series
|
San Ace 40W Splash Proof Fan
|
|
Frame Size (L×W×H)
|
40 × 40 × 28 mm
|
|
Rated Voltage
|
24 V DC
|
|
Operating Voltage Range
|
21.6–26.4 V DC
|
|
Rated Current
|
0.25 A
|
|
Rated Input Power
|
6.0 W
|
|
Rated Speed
|
22200 min⁻¹ (RPM)
|
|
Maximum Airflow
|
0.63 m³/min (22.2 CFM)
|
|
Maximum Static Pressure
|
555 Pa (2.22 inchH₂O)
|
|
Sound Pressure Level (SPL)
|
53 dB(A)
|
|
Operating Temperature Range
|
-20 ~ +70 °C
|
|
Expected Service Life
|
40,000 hours @ 60°C; 70,000 hours @ 40°C
|
|
Frame Material
|
Flame-retardant plastic (UL 94V-0)
|
|
IP Rating
|
IP68 (dust-tight, protected against continuous water immersion)
|
|
Sensor Type
|
Pulse Sensor (FG speed signal output)
|
|
PWM Control Function
|
Yes
|
|
Ribbed Frame
|
No
|
|
Mass
|
60 g
|
|
Compliance
|
UL, CSA, EN, RoHS
|
3. Key Features & Technical Advantages
3.1 IP68 Splash-Proof Construction
The fan is fully sealed to meet IP68 standards, providing complete protection against dust ingress and continuous water immersion. This makes it suitable for:
-
Outdoor installations exposed to rain, splashes, or washdown procedures
-
Industrial environments with high humidity or particulate contamination
-
Marine and transportation applications with moisture exposure
3.2 High-Performance Airflow & Static Pressure
At 22200 RPM, the 9WPA0424P3G0011 delivers industry-leading performance in its class:
-
0.63 m³/min (22.2 CFM) of airflow for effective heat dissipation
-
555 Pa of static pressure to overcome high system impedance (e.g., in densely packed electronics or filtered enclosures)
3.3 PWM Speed Control & Monitoring
-
PWM Control: Built-in pulse-width modulation (PWM) function allows dynamic speed adjustment (typically 20–100% speed) based on system thermal load, reducing power consumption and noise during low-demand conditions.
-
Pulse Sensor Output: Provides a tachometer (FG) signal for real-time speed monitoring, enabling system-level thermal management and fault detection.
3.4 Long-Term Reliability
-
Extended Service Life: Rated for 40,000 hours at 60°C (70,000 hours at 40°C), minimizing maintenance and replacement costs.
-
Wide Operating Temperature: Stable performance across -20°C to +70°C, suitable for extreme ambient conditions.
-
Certified Safety & Compliance: UL, CSA, EN, and RoHS certifications ensure global compatibility and environmental sustainability.
4. Comparison with Related San Ace 40W Models
|
Model
|
9WPA0412H30011 (12V, No PWM)
|
9WPA0424P3G001 (24V, PWM, Ribbed)
|
9WPA0424P3G0011 (24V, PWM, Non-Ribbed)
|
|
Rated Voltage
|
12 V DC
|
24 V DC
|
24 V DC
|
|
Rated Speed
|
18500 RPM
|
22200 RPM
|
22200 RPM
|
|
Max. Airflow
|
0.52 m³/min (18.3 CFM)
|
0.63 m³/min (22.2 CFM)
|
0.63 m³/min (22.2 CFM)
|
|
Max. Static Pressure
|
375 Pa
|
555 Pa
|
555 Pa
|
|
PWM Control
|
No
|
Yes
|
Yes
|
|
Ribbed Frame
|
No
|
Yes
|
No
|
|
SPL
|
48 dB(A)
|
53 dB(A)
|
53 dB(A)
|
|
IP Rating
|
IP68
|
IP68
|
IP68
|
|
Sensor Type
|
Pulse Sensor
|
Pulse Sensor
|
Pulse Sensor
|
5. Typical Applications
The 9WPA0424P3G0011 is ideal for applications requiring robust cooling in challenging environments, including:
-
EV Charging Infrastructure: DC fast chargers, AC charging stations, and power conversion modules exposed to outdoor conditions.
-
Outdoor Digital Signage & Kiosks: Weatherproof displays, advertising panels, and interactive kiosks.
-
Industrial Automation: Control panels, PLCs, and motor drives in dusty/humid factory environments.
-
Renewable Energy: PV inverters, solar power controllers, and wind turbine electronics.
-
Marine & Transportation: On-board electronics for boats, buses, and rail vehicles exposed to moisture and vibration.
-
Harsh-Environment Communication: Outdoor routers, base stations, and IoT gateways.
6. Installation & Integration Notes
-
Power Supply: Ensure the 24V DC power supply can deliver at least 0.25 A per fan to avoid performance degradation.
-
PWM Control: Connect the PWM signal to a 5V-compatible controller (check the official datasheet for signal specifications).
-
Mounting: Use standard 40mm fan mounting holes (M3 screws recommended) and ensure proper airflow path design to maximize static pressure utilization.
-
Environmental Sealing: While the fan itself is IP68-rated, ensure the overall enclosure design maintains appropriate ingress protection for other components.
∷
