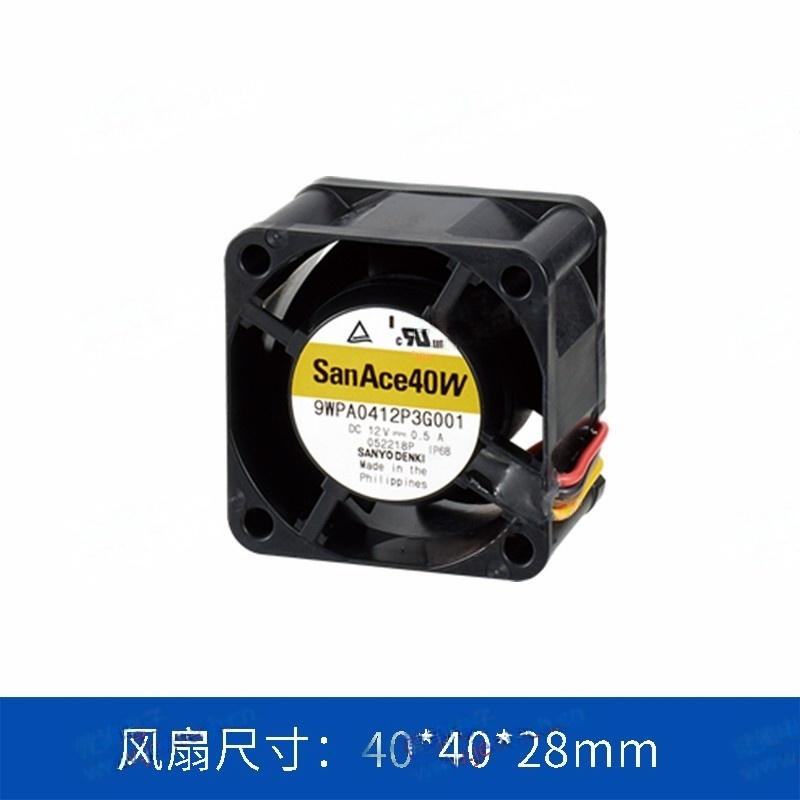

4028 12V Splash Proof Fan

9WPA0412H30011

Brand: SanAce (Japan sanyodenki)
Size: 40x40x28mm
Characteristics: IP68 Splash Proof Fan
Signal line: 4-wire PWM + FG
Product description: The Sanyo Denki 9WPA0412H30011 is an IP68-rated splash-proof DC cooling fan from the San Ace 40W series. With 40x40x28mm dimensions, 12V input, 18500 RPM speed, 0.52 m³/min airflow, and 375 Pa static
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承认书/规格书	型号	额定定压	电压范围	额定电流	额定功率	转速	最大风量		最大风压			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	㎥/min	CFM	Pa	mmH2O	INH2O	DB-A
暂无	9WPA0412P3G001	12	10.8~13.2	0.5	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0412P3G0011	12	10.8~13.2	0.5	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0424P3G001	24	21.6~26.4	0.25	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0424P3G0011	24	21.6~26.4	0.25	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0412H3001	12	10.8~13.2	0.34	4.1	18500	0.52	18.3	375		1.51	48
	9WPA0412H30011	12	10.8~13.2	0.34	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WPA0424H3001	24	21.6~26.4	0.17	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WPA0424H30011	24	21.6~26.4	0.17	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0412P3J001	12	10.8~13.2	0.52	6.24	17500	0.63	22.2	400		1.61	51
暂无	9WL0412P3G001	12	10.8~13.2	0.4	4.8	15500	0.56	19.7	310		1.24	47
暂无	9WL0424P3J001	24	21.6~26.4	0.26	6.24	17500	0.63	22.2	400		1.61	51
暂无	9WL0424P3G001	24	21.6~26.4	0.2	4.8	15500	0.56	19.7	310		1.24	47

PRODUCT PRESENTATION

Sanyo Denki San Ace 40W 9WPA0412H30011 Splash Proof DC Cooling Fan

1. Product Overview

The 9WPA0412H30011 is a high-performance, IP68-rated splash-proof DC cooling fan from Sanyo Denki’s San Ace 40W series, engineered for reliable thermal management in harsh, moisture-prone environments. Measuring 40×40×28 mm, this compact fan delivers exceptional airflow and static pressure, making it ideal for outdoor electronics, EV charging stations, industrial automation equipment, and other applications requiring water and dust resistance.

2. Key Features

IP68 Splash & Dust Protection: Fully protected against water immersion and dust ingress, ensuring reliable operation in wet, dusty, or outdoor conditions.
High-Speed, High-Pressure Performance: 18500 RPM rated speed delivers 0.52 m³/min (18.3 CFM) airflow and 375 Pa static pressure for demanding cooling needs.
Wide Operating Voltage: Supports 7–13.8 V DC input, ensuring stable performance even with minor power fluctuations.
Long Service Life: 40,000 hours expected life at 60°C (70,000 hours at 40°C) minimizes maintenance needs.
Pulse Sensor Output: Provides tachometer signal for speed monitoring, ideal for system integration.
Certified Compliance: UL, CSA, EN, and RoHS compliant, meeting global safety and environmental standards.

3. Full Technical Specifications

表格

Parameter	Specification
Model No.	9WPA0412H30011
Series	San Ace 40W Splash Proof Fan
Frame Size	40 × 40 × 28 mm
Rated Voltage	12 V DC
Operating Voltage Range	7–13.8 V DC
Rated Current	0.34 A
Rated Input Power	4.1 W
Rated Speed	18500 min⁻¹
Max. Airflow	0.52 m³/min (18.3 CFM)
Max. Static Pressure	375 Pa (1.51 inchH₂O)
Sound Pressure Level (SPL)	48 dB(A)
Operating Temperature	-20 ~ +70 °C
Expected Life	40,000 hours @ 60°C; 70,000 hours @ 40°C
Frame Material	Plastic (UL 94V-0 flame retardant)
IP Rating	IP68
Sensor Type	Pulse Sensor (FG Signal)
PWM Control Function	No
Mass	60 g
Ribbed	No

4. Application Scenarios

This fan is purpose-built for environments where standard cooling fans would fail due to moisture, dust, or extreme conditions, including:

Outdoor Digital Signage & Kiosks
EV Charging Stations & DC Fast Chargers
PV Inverters & Solar Power Equipment
Industrial Control Panels & Automation Systems
Marine & Transportation Electronics
Harsh-Environment Communication Devices

5. Reliability & Compliance

The 9WPA0412H30011 undergoes rigorous testing to ensure long-term performance in challenging conditions:

IP68 Rating: Fully dust-tight and protected against continuous immersion in water, suitable for washdown or outdoor use.
Certifications: UL, CSA, and EN safety certifications, plus RoHS compliance for environmental sustainability.
Durability: High-quality ball bearings and rugged construction ensure consistent operation across -20°C to +70°C.
