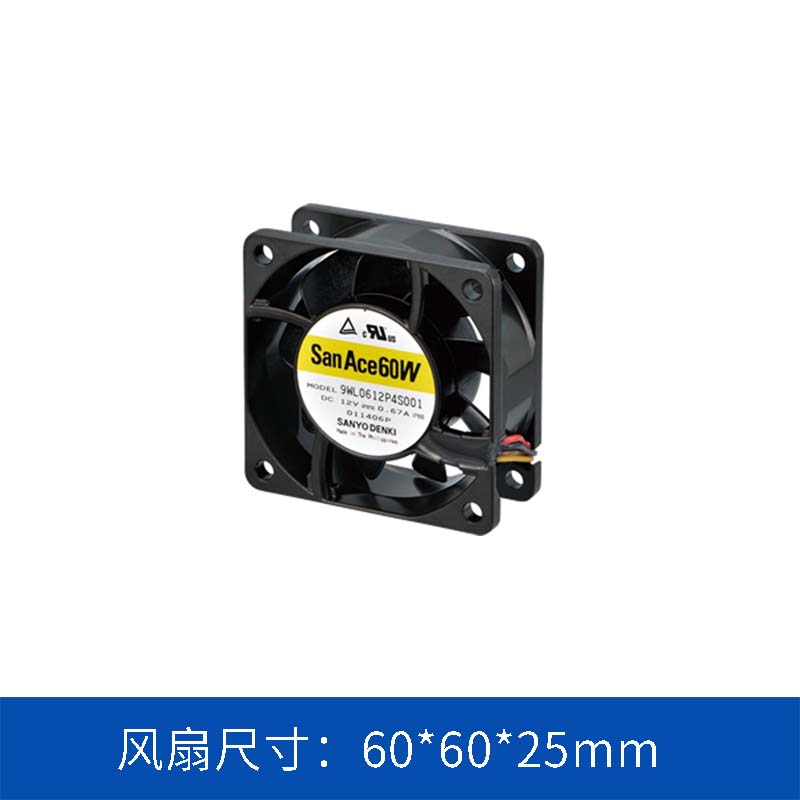

6025 12V Splash Proof Fan

9WL0612P4S001

Brand: SanAce (Japan sanyodenki)
Size: 60x60x25mm
Characteristics: IP68 Splash Proof Fan
Signal line: 4-wire PWM + FG
Product description: Sanyo Denki San Ace 9WL0612P4S001 is a 60×60×25mm IP68-rated splash proof fan with 12V PWM control, high static pressure and long life, ideal for outdoor and wet-environment applications.
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承认书/规格书	型号	额定定压	电压范围	额定电流	额定功率	转速	最大风量		最大风压			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	㎥/min	CFM	Pa	mmH2O	INH2O	DB-A
暂无	9WPA0612P4G001	12	10.8~13.2	0.17	2	13700	0.38	13.4	210		0.84	44
暂无	9WPA0612P4G0011	24	14~27.6	0.09	2	13700	0.38	13.4	210		0.84	44
暂无	9WPA0612P4H001	12	10.8~13.2	0.075	0.9	8800	0.24	8.5	81		0.33	34
暂无	9WPA0612P4H0011	24	14~27.6	0.038	0.9	8800	0.24	8.5	81		0.33	34
暂无	9WPA0624P4G001	12	10.8~13.2	0.1	1.2	8000	0.225	8	65.7		0.264	33
暂无	9WPA0624P4G0011	12	10.8~13.2	0.06	0.72	6500	0.183	6.5	45.1		0.181	28
暂无	9WPA0612M4001	12	10.8~13.2	0.5	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0612M40011	12	10.8~13.2	0.5	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0624M4001	24	14~27.6	0.25	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0624M40011	24	14~27.6	0.25	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0624S4001	12	10.8~13.2	0.34	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WPA0624S40011	12	10.8~13.2	0.34	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0612P4S001	24	14~27.6	0.17	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0612P4J001	24	14~27.6	0.17	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0612P4H001	12	10.8~13.2	0.52	6.24	17500	0.63	22.2	400		1.61	51
暂无	9WL0624P4S001	12	10.8~13.2	0.4	4.8	15500	0.56	19.7	310		1.24	47
暂无	9WL0624P4J001	24	14~27.6	0.26	6.24	17500	0.63	22.2	400		1.61	51
暂无	9WL0624P4H001	24	14~27.6	0.2	4.8	15500	0.56	19.7	310		1.24	47

PRODUCT PRESENTATION

San Ace 60W Splash Proof Fan: 9WL0612P4S001

Overview

The San Ace 60W (9WL0612P4S001) is a high-performance IP68-rated splash proof DC axial fan from Sanyo Denki, engineered to deliver reliable cooling in harsh environments exposed to water, dust, and extreme temperatures. With a compact 60×60×25mm form factor, 12V operation, and PWM speed control, it balances high airflow, long life, and rugged durability for industrial and outdoor applications.

Key Features

IP68 Splash & Dust Protection: Fully protected against dust ingress and continuous water immersion, suitable for outdoor and washdown environments.
High Airflow & Static Pressure: Delivers 1.4 m³/min (49.4 CFM) airflow and 300 Pa static pressure for effective cooling even with airflow obstructions.
Long Service Life: Rated L10 life of 180,000 hours at 60°C (215,000 hours at 40°C), ensuring low maintenance and long-term reliability.
PWM Speed Control: Supports pulse-width modulation (PWM) for adjustable speed, reducing noise and power consumption when cooling demands are low.
Wide Operating Temperature: -20°C to +70°C, stable performance in extreme cold and heat.
Certifications: Compliant with UL, CSA, EN safety standards, and RoHS directive for global use.

Full Specifications

表格

Parameter	Value	Parameter	Value
Model No.	9WL0612P4S001	Frame Size	60 × 60 × 25 mm
Rated Voltage	12 V DC	Operating Voltage Range	10.8 ~ 13.2 V DC
Rated Current	0.67 A	Rated Input Power	8.04 W
Rated Speed	11,000 min⁻¹	Max. Airflow	1.4 m³/min (49.4 CFM)
Max. Static Pressure	300 Pa (1.204 inchH₂O)	Sound Pressure Level (SPL)	53 dB(A)
Operating Temperature	-20 ~ +70 °C	Expected Life (L10)	180,000 h @ 60°C / 215,000 h @ 40°C
Frame Material	Aluminum	Mass	120 g
IP Rating	IP68	Sensor Type	Pulse Sensor
PWM Control Function	Yes	Ribbed Frame	No

Technical Details & Construction

The San Ace 60W series features a robust design optimized for harsh conditions:

Waterproof Construction: Conductor parts (windings, PCB) are sealed with splash-resistant materials to prevent water damage, achieving IP68 ingress protection.
Aluminum Frame: Provides excellent heat dissipation and mechanical durability, even in high-vibration environments.
High-Efficiency Motor: The 12V DC motor is engineered for low power consumption while maintaining high airflow and pressure performance.
Pulse Sensor Output: Provides tachometer feedback for speed monitoring, enabling closed-loop cooling system control.

Typical Applications

This splash proof fan is ideal for equipment exposed to moisture, dust, or outdoor conditions, including:

Outdoor Digital Signage & Kiosks
EV Charging Stations & Power Inverters
Industrial Automation & Control Panels
Marine & Transportation Equipment
Food Processing & Washdown Environments
Telecommunication Base Stations
