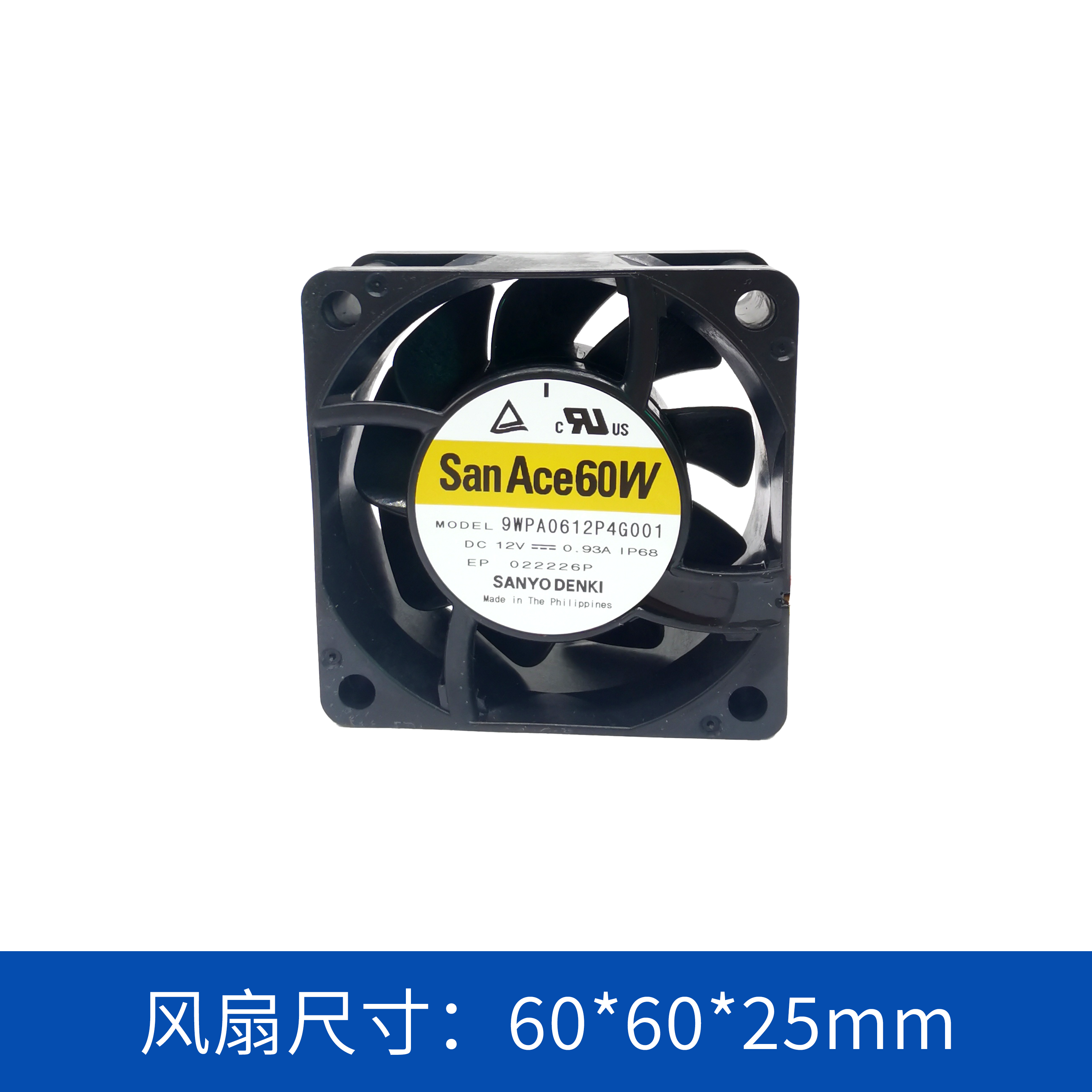

6025 12V Splash Proof Fan

9WPA0612P4G0011

Brand: SanAce (Japan sanyodenki)
Size: 60x60x25mm
Characteristics: IP68 Splash Proof Fan
Signal line: 4-wire PWM + FG
Product description: Sanyo Denki San Ace 60W 9WPA0612P4G0011 60x60x25mm 12V DC IP68 splash proof cooling fan with PWM control, 12000 RPM, 1.52 m³/min airflow, 357 Pa static pressure, ideal for harsh environment cooling.
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承认书/规格书	型号	额定定压	电压范围	额定电流	额定功率	转速	最大风量		最大风压			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	㎥/min	CFM	Pa	mmH2O	INH2O	DB-A
暂无	9WPA0612P4G001	12	10.8~13.2	0.17	2	13700	0.38	13.4	210		0.84	44
	9WPA0612P4G0011	24	14~27.6	0.09	2	13700	0.38	13.4	210		0.84	44
暂无	9WPA0612P4H001	12	10.8~13.2	0.075	0.9	8800	0.24	8.5	81		0.33	34
暂无	9WPA0612P4H0011	24	14~27.6	0.038	0.9	8800	0.24	8.5	81		0.33	34
暂无	9WPA0624P4G001	12	10.8~13.2	0.1	1.2	8000	0.225	8	65.7		0.264	33
暂无	9WPA0624P4G0011	12	10.8~13.2	0.06	0.72	6500	0.183	6.5	45.1		0.181	28
暂无	9WPA0612M4001	12	10.8~13.2	0.5	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0612M40011	12	10.8~13.2	0.5	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0624M4001	24	14~27.6	0.25	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0624M40011	24	14~27.6	0.25	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0624S4001	12	10.8~13.2	0.34	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WPA0624S40011	12	10.8~13.2	0.34	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0612P4S001	24	14~27.6	0.17	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0612P4J001	24	14~27.6	0.17	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0612P4H001	12	10.8~13.2	0.52	6.24	17500	0.63	22.2	400		1.61	51
暂无	9WL0624P4S001	12	10.8~13.2	0.4	4.8	15500	0.56	19.7	310		1.24	47
暂无	9WL0624P4J001	24	14~27.6	0.26	6.24	17500	0.63	22.2	400		1.61	51
暂无	9WL0624P4H001	24	14~27.6	0.2	4.8	15500	0.56	19.7	310		1.24	47

PRODUCT PRESENTATION

San Ace 60W 9WPA0612P4G0011 IP68 Splash Proof Fan

1. Product Overview

The San Ace 60W 9WPA0612P4G0011 is a high-performance, IP68-rated splash proof axial cooling fan from Sanyo Denki, designed for reliable operation in harsh environments where exposure to water, dust, and moisture is a concern. Built with advanced waterproofing technology and rugged construction, this 60×60×25mm fan delivers exceptional airflow and static pressure, making it ideal for industrial, outdoor, and electronic equipment cooling applications.

2. Key Features

IP68 Protection Rating: Fully dust-tight and protected against continuous immersion in water, ensuring stable operation in wet, dusty conditions.
High Airflow & Static Pressure: Delivers a maximum airflow of 1.52 m³/min (53.7 CFM) and static pressure up to 357 Pa (1.43 inchH₂O) for efficient cooling in high-resistance systems.
PWM Speed Control: Supports pulse-width modulation (PWM) for precise speed adjustment, enabling energy efficiency and noise optimization.
Long Service Life: Rated for 40,000 hours at 60°C (70,000 hours at 40°C) under continuous operation, ensuring long-term reliability.
Wide Operating Temperature Range: Functions reliably from -20°C to +70°C, suitable for extreme environmental conditions.
Compliance Certifications: UL, CSA, EN, and RoHS compliant, meeting global safety and environmental standards.

3. Full Technical Specifications

表格

Parameter	Specification
Model No.	9WPA0612P4G0011
Frame Size	60 × 60 × 25 mm
Rated Voltage	12 V DC
Operating Voltage Range	10.8 ~ 13.2 V DC
Rated Current	0.93 A
Rated Input Power	11.16 W
Rated Speed	12,000 RPM
Max. Airflow	1.52 m³/min (53.7 CFM)
Max. Static Pressure	357 Pa (1.43 inchH₂O)
Sound Pressure Level (SPL)	56 dB(A)
Operating Temperature	-20 ~ +70 °C
Expected Service Life	40,000 h @ 60°C / 70,000 h @ 40°C
Mass	110 g
Frame Material	Plastic
IP Rating	IP68
Control Function	PWM Control (Yes)
Sensor Type	Pulse Sensor
Ribbed Design	No
Compliance	UL, CSA, EN, RoHS

4. Application Scenarios

The San Ace 60W 9WPA0612P4G0011 fan is engineered for demanding cooling applications, including:

Outdoor Digital Signage & Kiosks: Withstanding rain, humidity, and dust exposure.
EV Charging Stations & Power Equipment: Reliable cooling in wet or high-temperature environments.
Industrial Automation & Control Panels: Protecting sensitive electronics in factory or harsh industrial settings.
Renewable Energy Systems (Solar/Wind Inverters): Resistant to moisture and environmental contaminants.
Marine & Outdoor Electronic Devices: IP68-rated protection against water splashes and submersion.

5. Why Choose Sanyo Denki San Ace Splash Proof Fans?

Sanyo Denki’s San Ace series is renowned for its precision engineering, durability, and performance in challenging conditions. The 9WPA0612P4G0011 stands out with:

Superior Waterproofing: IP68 rating ensures full protection against water ingress, far exceeding standard splash-proof fans.
Optimized Aerodynamics: High-speed design delivers industry-leading airflow and static pressure for compact 60mm fans.
Proven Reliability: Backed by Sanyo Denki’s decades of expertise in cooling solutions, with strict quality control and long life ratings.
Flexible Control: PWM functionality allows integration into smart cooling systems for dynamic speed adjustment and noise reduction.
