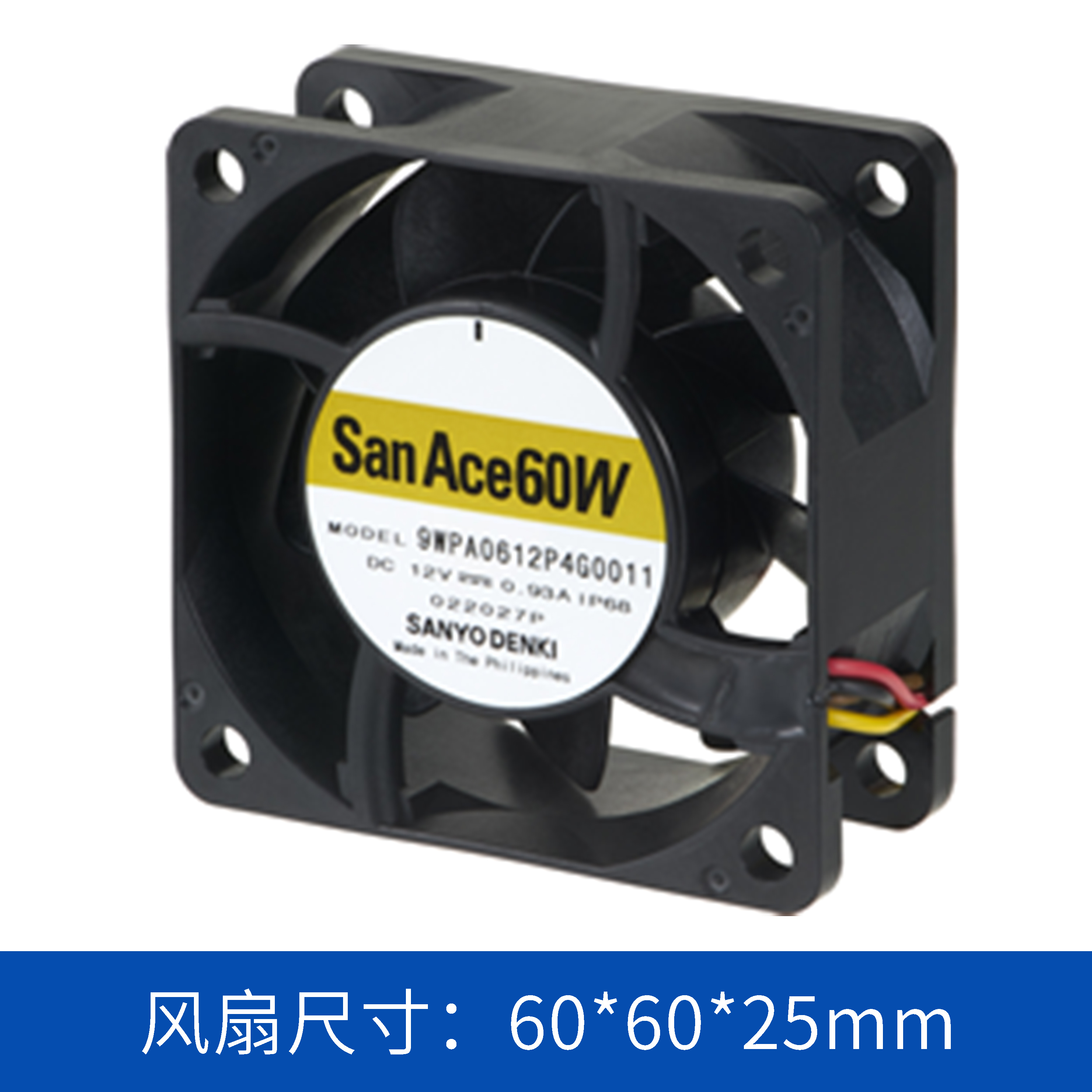

6025 24V Splash Proof Fan

9WPA0624S40011

Brand: SanAce (Japan sanyodenki)
Size: 60x60x25mm
Characteristics: IP68 Splash Proof Fan
Signal line: 3-wire
Product description: Sanyo Denki San Ace 9WPA0624S40011 IP68 splash-proof DC fan with 60×60×25mm frame, 24V DC, 7800 RPM, pulse sensor, ideal for outdoor equipment, EV chargers, and industrial automation cooling in humid
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承认书/规格书	型号	额定定压	电压范围	额定电流	额定功率	转速	最大风量		最大风压			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	㎥/min	CFM	Pa	mmH2O	INH2O	DB-A
暂无	9WPA0612P4G001	12	10.8~13.2	0.17	2	13700	0.38	13.4	210		0.84	44
暂无	9WPA0612P4G0011	24	14~27.6	0.09	2	13700	0.38	13.4	210		0.84	44
暂无	9WPA0612P4H001	12	10.8~13.2	0.075	0.9	8800	0.24	8.5	81		0.33	34
暂无	9WPA0612P4H0011	24	14~27.6	0.038	0.9	8800	0.24	8.5	81		0.33	34
暂无	9WPA0624P4G001	12	10.8~13.2	0.1	1.2	8000	0.225	8	65.7		0.264	33
暂无	9WPA0624P4G0011	12	10.8~13.2	0.06	0.72	6500	0.183	6.5	45.1		0.181	28
暂无	9WPA0612M4001	12	10.8~13.2	0.5	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0612M40011	12	10.8~13.2	0.5	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0624M4001	24	14~27.6	0.25	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0624M40011	24	14~27.6	0.25	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0624S4001	12	10.8~13.2	0.34	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WPA0624S40011	12	10.8~13.2	0.34	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0612P4S001	24	14~27.6	0.17	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0612P4J001	24	14~27.6	0.17	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0612P4H001	12	10.8~13.2	0.52	6.24	17500	0.63	22.2	400		1.61	51
暂无	9WL0624P4S001	12	10.8~13.2	0.4	4.8	15500	0.56	19.7	310		1.24	47
暂无	9WL0624P4J001	24	14~27.6	0.26	6.24	17500	0.63	22.2	400		1.61	51
暂无	9WL0624P4H001	24	14~27.6	0.2	4.8	15500	0.56	19.7	310		1.24	47

PRODUCT PRESENTATION

Sanyo Denki San Ace 60W 9WPA0624S40011 IP68 Splash Proof DC Axial Fan

1. Product Overview

The San Ace 60W 9WPA0624S40011 is a high-performance IP68-rated splash-proof DC axial fan from Sanyo Denki, designed for reliable cooling in challenging environments. With a compact 60×60×25mm frame, 24V DC operation, and a robust design, it delivers consistent airflow and static pressure while withstanding water splashes, humidity, and dust—making it ideal for outdoor and industrial applications.

2. Core Specifications

表格

Parameter	Details
Model No.	9WPA0624S40011
Frame Size	60 × 60 × 25 mm
Rated Voltage	24 V DC (Operating Range: 21.6–26.4 V)
Rated Current	0.17 A
Rated Power	4.08 W
Rated Speed	7,800 RPM
Max. Airflow	0.99 m³/min (35 CFM)
Max. Static Pressure	151 Pa (0.6 inchH₂O)
Sound Pressure Level	43 dB(A)
Operating Temperature	-20 ~ +70 °C
Expected Life	40,000 hours @ 60°C (70,000 hours @ 40°C)
IP Rating	IP68 (Splash Proof)
Sensor Type	Pulse Sensor
PWM Control	No
Frame Material	Plastic
Mass	110 g
Compliance	UL, CSA, EN, RoHS

3. Key Features & Advantages

IP68 Splash Proof Design: Fully sealed construction prevents water splashes, dust, and moisture ingress, ensuring stable operation in harsh outdoor and industrial environments.
High-Reliability Performance: Built for long service life (up to 70,000 hours at 40°C), making it suitable for continuous-duty applications.
Compact Form Factor: The 60×60×25mm frame fits into space-constrained equipment without compromising cooling efficiency.
Pulse Sensor Support: Enables speed monitoring for real-time performance tracking and fault detection.
Wide Operating Voltage Range: Tolerates voltage fluctuations from 21.6V to 26.4V, enhancing compatibility with various power systems.
Compliance with Global Standards: Meets UL, CSA, EN safety standards and RoHS directives for environmental compliance.

4. Typical Applications

The 9WPA0624S40011 is engineered for environments where exposure to water or humidity is common, including:

Outdoor digital signage and kiosks
EV charging stations and power modules
Photovoltaic (PV) inverters and solar equipment
Industrial automation control panels
Telecommunications equipment exposed to the elements
Marine and transportation electronics

5. Why Choose Sanyo Denki San Ace Fans?

Sanyo Denki’s San Ace series is renowned for its precision engineering, high-quality components, and proven reliability. The 9WPA0624S40011 combines advanced splash-proof technology with the brand’s signature performance, ensuring consistent cooling in even the most demanding conditions. Backed by rigorous testing and global compliance certifications, it is a trusted choice for industrial and outdoor thermal management solutions.
