SANYO DENKI San Ace 9BMB24F201 24V DC Blower for Compact Electronic Cooling

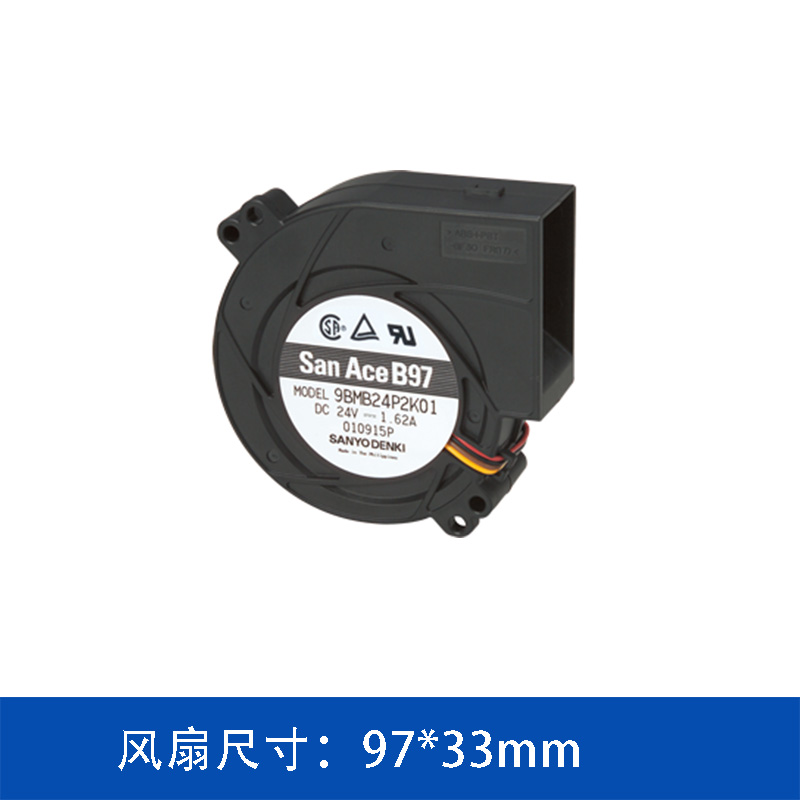

The SANYO DENKI San Ace 9BMB24F201 is a compact 24V DC blower designed for electronic and industrial equipment that requires directed airflow within a limited installation space.

With a 97 × 33 mm form factor, the blower provides a maximum airflow of 36.7 CFM and a maximum static pressure of 410 Pa. Its compact structure allows engineers to consider airflow routing as part of the equipment's thermal design rather than relying only on the installation position of a conventional axial fan.

The model also features a pulse sensor, while its rated operating voltage is 24V DC.

1. 97 × 33 mm Blower for Space-Constrained Equipment

The 9BMB24F201 uses a 97 mm × 33 mm blower format.

For compact electronic equipment, available fan installation space is often restricted by PCBs, heat sinks, power modules, cables and structural components. In these situations, simply increasing the size of an axial fan may not be practical.

A blower provides a different airflow configuration. Air enters through the intake and is discharged in a direction approximately perpendicular to the intake direction.

This can simplify airflow routing inside equipment and may reduce the need for additional external duct structures.

Typical design considerations include:

• Limited internal installation space
• Restricted airflow passages
• Concentrated heat sources
• Directional cooling requirements
• Compact equipment enclosures
• Heat sinks requiring forced airflow

For these applications, the mechanical configuration of the blower can be as important as its airflow rating.

2. 24V DC Electrical Configuration

The San Ace 9BMB24F201 operates from a rated 24V DC supply.

Its main electrical specifications are:

The 24V configuration can be integrated into equipment using an existing 24V DC power architecture, which is common in many industrial and electronic systems.

3. 410 Pa Static Pressure for Restricted Airflow Paths

A key characteristic of the 9BMB24F201 is its 410 Pa maximum static pressure.

When a cooling fan is installed inside actual equipment, the airflow path rarely behaves like an unrestricted free-air environment.

Pressure losses can occur through:

• Heat sinks
• Protective meshes
• Air filters
• Narrow vents
• Internal ducts
• PCB assemblies
• Component spacing
• Outlet openings

These restrictions create system impedance.

As the impedance increases, the actual airflow delivered by a fan decreases. Consequently, the maximum airflow specification should not be treated as the airflow that will necessarily be achieved after installation.

For the 9BMB24F201, the 410 Pa pressure capability provides an important reference when evaluating applications with defined airflow paths and moderate system resistance.

Engineers should therefore compare the fan's performance curve with the calculated system curve to identify the actual operating point.

4. 36.7 CFM Maximum Airflow

The maximum airflow of the 9BMB24F201 is 1.04 m³/min, or 36.7 CFM.

This airflow capacity can support forced-air cooling in compact electronic systems where natural convection is insufficient.

However, airflow requirements should always be determined from the thermal characteristics of the equipment.

A simplified thermal design process can begin with:

Heat generation → required temperature rise → required airflow → system resistance → fan operating point

This approach is more useful than selecting a fan according to CFM alone.

For example, a cooling system with a relatively narrow air passage may require sufficient static pressure to maintain useful airflow. A fan with a large free-air airflow rating but insufficient pressure capability may not deliver the expected cooling performance after installation.

5. Directed Airflow from the Blower Structure

One of the reasons engineers consider blower fans is the ability to change the direction of airflow without requiring a conventional external duct.

This can be particularly useful when the PCB layout and thermal components do not align with the available external openings.

For example, a blower can be positioned so that cooling air is drawn from one direction and discharged toward a heat sink or another high-temperature area.

This gives equipment designers greater flexibility when developing:

• Compact communication equipment
• Industrial control systems
• Power electronics
• Server-related equipment
• Storage equipment
• Electronic control modules

The final airflow configuration should nevertheless be verified through thermal testing or airflow simulation because the internal structure of the equipment directly affects blower performance.

6. Pulse Sensor for Operating Status Monitoring

The 9BMB24F201 is equipped with a pulse sensor.

A pulse feedback signal can provide the system controller with information about fan rotation.

This function can be useful in equipment that requires monitoring of the cooling system.

For example, the controller can use fan-speed feedback as part of a thermal protection strategy. If the detected fan speed falls outside the expected range, the system can generate an alarm or initiate a protective response, depending on the equipment architecture.

For continuously operating industrial equipment, this type of feedback can also support preventive maintenance strategies.

7. 56 dBA Noise Specification

The specified noise level of the 9BMB24F201 is 56 dBA.

Noise performance in a blower-based cooling system depends not only on the fan itself but also on the surrounding equipment structure.

The final acoustic result can be influenced by:

• Fan speed
• Airflow resistance
• Outlet dimensions
• Duct geometry
• Mounting structure
• Vibration transmission
• Air turbulence
• Equipment enclosure

Therefore, the 56 dBA catalog value should be treated as a fan specification under specified test conditions rather than a guaranteed noise level for the complete finished equipment.

For noise-sensitive applications, system-level acoustic testing is recommended.

8. 10.8 W Rated Power

The rated power consumption of the 9BMB24F201 is 10.8 W, based on its 24V input and 0.45A rated current.

Power consumption is an important consideration in equipment with multiple cooling fans.

For example, when several fans are installed in a single system, the combined fan power can contribute to the overall auxiliary power requirement.

The relationship between:

cooling capacity → fan speed → power consumption → thermal load

should therefore be considered during system design.

The 9BMB24F201 provides a relatively moderate power configuration within the 97 × 33 mm San Ace blower lineup.

9. Service Life at Different Temperatures

The specified expected life of the 9BMB24F201 is:

• 40,000 hours at 60°C
• 70,000 hours at 40°C

Temperature is an important factor when evaluating long-term fan operation.

A fan installed inside an electronic enclosure may operate in an environment considerably warmer than the surrounding room because of heat generated by power components, processors and other electronics.

For this reason, fan selection should consider the actual temperature around the fan rather than only the ambient temperature outside the equipment.

Long-term reliability analysis should take into account:

• Internal equipment temperature
• Fan operating temperature
• Continuous operating hours
• Fan speed
• Installation environment
• Dust and contamination
• Required maintenance cycle

10. Potential Applications

The specifications and blower structure of the San Ace 9BMB24F201 make it suitable for consideration in various compact electronic and industrial cooling systems.

Server and Computing Equipment

Compact computing systems can have concentrated heat sources and limited airflow space. A blower can help direct cooling air toward specific thermal components.

Communication Equipment

Communication equipment frequently combines high-density PCBs, processors and power modules within relatively compact enclosures. Directed airflow can simplify internal thermal management.

Industrial Control Equipment

Industrial controllers and automation equipment may operate continuously and require stable cooling for processors, power supplies and other electronic components.

Storage and Power Electronics

Storage systems and power conversion equipment can contain multiple heat-generating components. A pressure-capable blower can be considered where the internal airflow path creates meaningful resistance.

Compact Electronic Devices

The 97 × 33 mm form factor can also be considered for electronic products where a conventional axial fan cannot provide the required airflow direction or installation flexibility.

11. How to Evaluate the 9BMB24F201

When selecting the 9BMB24F201, engineers should evaluate the complete cooling system rather than comparing only maximum airflow values.

A practical evaluation can follow these steps:

Step 1: Determine the Heat Load

Identify the main heat-generating components and calculate the total thermal load.

Step 2: Define the Target Temperature

Establish the maximum allowable temperature for the critical components.

Step 3: Calculate the Required Airflow

Determine the approximate airflow required to remove the generated heat.

Step 4: Estimate System Resistance

Consider heat sinks, filters, grilles, ducts and openings that will restrict airflow.

Step 5: Identify the Operating Point

Use the blower's performance curve together with the system impedance curve to determine the expected airflow under actual operating conditions.

Step 6: Consider Fan Monitoring

If fan failure could affect equipment reliability, the pulse sensor can be integrated into the system monitoring architecture.

Step 7: Verify the Thermal Design

Prototype testing should be used to confirm component temperatures, airflow distribution and overall system performance.

Conclusion

The SANYO DENKI San Ace 9BMB24F201 is a 97 × 33 mm, 24V DC blower with a maximum airflow of 36.7 CFM and maximum static pressure of 410 Pa.

Its compact blower structure provides engineers with an alternative to conventional axial cooling fans when airflow direction and internal installation space are important design considerations.

With a rated power of 10.8 W, operating speed of 4,500 min⁻¹, 56 dBA noise specification and pulse sensor feedback, the model can be evaluated for compact servers, communication equipment, industrial controls, storage systems and other electronic cooling applications.

For accurate fan selection, the most important step is to match the airflow and static pressure characteristics of the blower with the actual impedance of the equipment cooling path. This allows the designer to evaluate the expected operating airflow rather than relying solely on the maximum catalog airflow.
