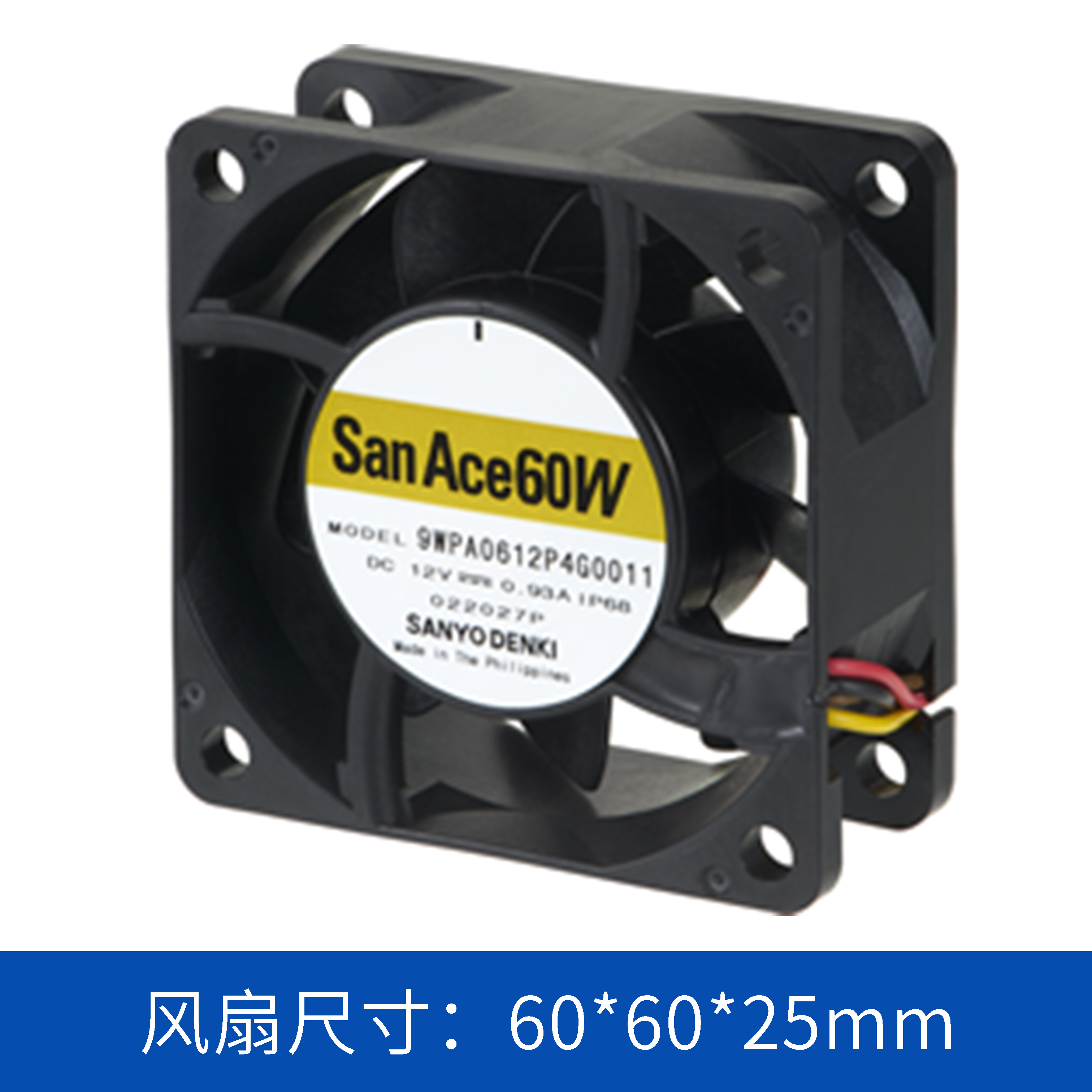

6025 12V Splash Proof Fan

9WPA0612P4H001

Brand: SanAce (Japan sanyodenki)
Size: 60x60x25mm
Characteristics: IP68 Splash Proof Fan
Signal line: 4-wire PWM + FG
Product description: SANYO DENKI San Ace 9WPA0612P4H001 splash proof cooling fan (60x60x25mm, 12V DC) with IP68 rating, PWM control, 5800RPM, 0.73m³/min airflow, ideal for outdoor and harsh environment applications.
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承认书/规格书	型号	额定定压	电压范围	额定电流	额定功率	转速	最大风量		最大风压			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	㎥/min	CFM	Pa	mmH2O	INH2O	DB-A
暂无	9WPA0612P4G001	12	10.8~13.2	0.17	2	13700	0.38	13.4	210		0.84	44
暂无	9WPA0612P4G0011	24	14~27.6	0.09	2	13700	0.38	13.4	210		0.84	44
	9WPA0612P4H001	12	10.8~13.2	0.075	0.9	8800	0.24	8.5	81		0.33	34
暂无	9WPA0612P4H0011	24	14~27.6	0.038	0.9	8800	0.24	8.5	81		0.33	34
暂无	9WPA0624P4G001	12	10.8~13.2	0.1	1.2	8000	0.225	8	65.7		0.264	33
暂无	9WPA0624P4G0011	12	10.8~13.2	0.06	0.72	6500	0.183	6.5	45.1		0.181	28
暂无	9WPA0612M4001	12	10.8~13.2	0.5	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0612M40011	12	10.8~13.2	0.5	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0624M4001	24	14~27.6	0.25	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0624M40011	24	14~27.6	0.25	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0624S4001	12	10.8~13.2	0.34	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WPA0624S40011	12	10.8~13.2	0.34	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0612P4S001	24	14~27.6	0.17	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0612P4J001	24	14~27.6	0.17	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0612P4H001	12	10.8~13.2	0.52	6.24	17500	0.63	22.2	400		1.61	51
暂无	9WL0624P4S001	12	10.8~13.2	0.4	4.8	15500	0.56	19.7	310		1.24	47
暂无	9WL0624P4J001	24	14~27.6	0.26	6.24	17500	0.63	22.2	400		1.61	51
暂无	9WL0624P4H001	24	14~27.6	0.2	4.8	15500	0.56	19.7	310		1.24	47

PRODUCT PRESENTATION

SANYO DENKI San Ace 9WPA0612P4H001 Splash Proof Fan

Overview

The San Ace 9WPA0612P4H001 is a high-performance splash proof DC cooling fan from SANYO DENKI’s San Ace 60W series, designed for reliable operation in harsh, water-exposed environments. With an IP68 rating, PWM control, and long lifespan, it is ideal for outdoor equipment, EV chargers, digital signage, and industrial automation systems requiring robust cooling.

Key Specifications

表格

Parameter	Details	Parameter	Details
Model No.	9WPA0612P4H001	Frame Size	60 × 60 × 25 mm
Rated Voltage	12 V DC	Operating Voltage Range	10.2–13.8 V DC
Rated Current	0.17 A	Rated Input Power	2.04 W
Rated Speed	5800 min⁻¹	Max. Airflow	0.73 m³/min (25.8 CFM)
Max. Static Pressure	83.4 Pa (0.33 inchH₂O)	Sound Pressure Level (SPL)	36 dB(A)
Operating Temperature	-20 to +70 °C	Expected Life	40,000 h @ 60 °C (70,000 h @ 40 °C)
IP Rating	IP68	PWM Control	Yes
Sensor Type	Pulse Sensor	Frame Material	Plastic
Mass	110 g	Ribbed Structure	Yes

Core Features

IP68 Splash & Dust Protection

The fan is fully sealed to meet IP68 standards, providing complete protection against water splashes, immersion, and dust ingress. It ensures stable operation in humid, rainy, or dusty environments, making it suitable for outdoor equipment.
High Performance & Efficiency

Delivering a maximum airflow of 0.73 m³/min and static pressure of 83.4 Pa at 5800 RPM, the fan balances strong cooling performance with low power consumption (2.04 W). Its ribbed frame design enhances structural stability and airflow efficiency.
PWM Speed Control

Equipped with PWM control functionality, the fan adjusts its speed dynamically based on equipment temperature, reducing noise and power consumption while extending operational life.
Long Lifespan & Reliability

With an expected lifespan of 40,000 hours at 60 °C (continuous operation), the fan is engineered for maintenance-free use in long-term applications, supported by SANYO DENKI’s quality standards (UL, CSA, EN, RoHS compliant).
Pulse Sensor for Monitoring

The built-in pulse sensor provides real-time speed feedback, enabling system monitoring and early detection of operational issues.

Typical Applications

EV charging stations and power inverters
Outdoor digital signage and kiosks
Industrial automation and control equipment
Solar energy systems and PV inverters
Telecommunication base stations exposed to harsh weather

Compliance & Certifications

The 9WPA0612P4H001 meets global safety and environmental standards, including:

Eco Products compliant
UL, CSA, and EN safety ratings
RoHS directive compliant
Splash Proof certified
