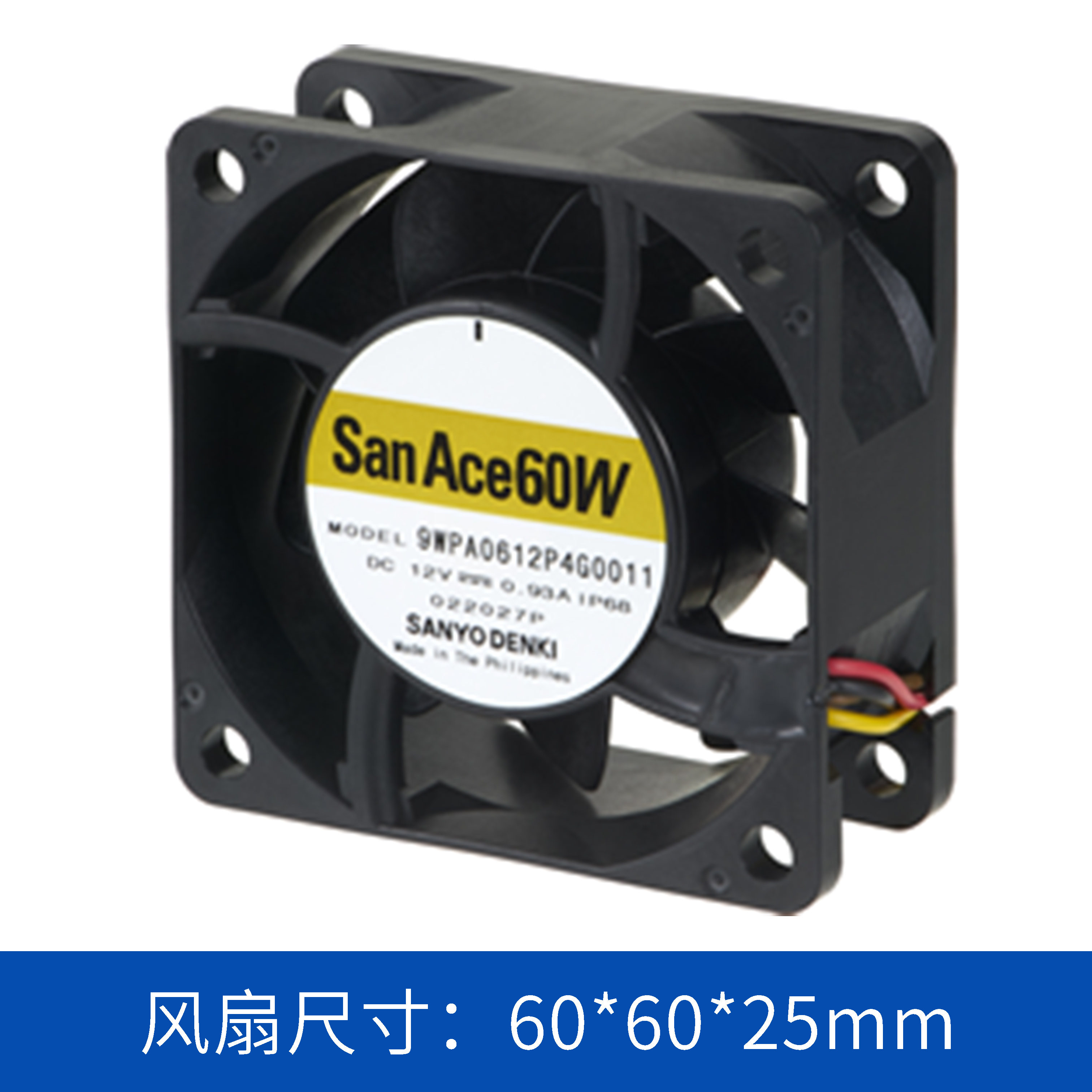

6025 12V Splash Proof Fan

9WPA0612P4H0011

Brand: SanAce (Japan sanyodenki)
Size: 60x60x25mm
Characteristics: IP68 Splash Proof Fan
Signal line: 4-wire PWM + FG
Product description: SANYO DENKI San Ace 60W 9WPA0612P4H0011 is a 60×60×25mm splash proof DC fan with IP68 rating, 12V rated voltage, 0.73m³/min airflow, 83.4Pa static pressure, PWM control, pulse sensor, and 40000h long
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承认书/规格书	型号	额定定压	电压范围	额定电流	额定功率	转速	最大风量		最大风压			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	㎥/min	CFM	Pa	mmH2O	INH2O	DB-A
暂无	9WPA0612P4G001	12	10.8~13.2	0.17	2	13700	0.38	13.4	210		0.84	44
暂无	9WPA0612P4G0011	24	14~27.6	0.09	2	13700	0.38	13.4	210		0.84	44
暂无	9WPA0612P4H001	12	10.8~13.2	0.075	0.9	8800	0.24	8.5	81		0.33	34
	9WPA0612P4H0011	24	14~27.6	0.038	0.9	8800	0.24	8.5	81		0.33	34
暂无	9WPA0624P4G001	12	10.8~13.2	0.1	1.2	8000	0.225	8	65.7		0.264	33
暂无	9WPA0624P4G0011	12	10.8~13.2	0.06	0.72	6500	0.183	6.5	45.1		0.181	28
暂无	9WPA0612M4001	12	10.8~13.2	0.5	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0612M40011	12	10.8~13.2	0.5	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0624M4001	24	14~27.6	0.25	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0624M40011	24	14~27.6	0.25	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0624S4001	12	10.8~13.2	0.34	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WPA0624S40011	12	10.8~13.2	0.34	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0612P4S001	24	14~27.6	0.17	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0612P4J001	24	14~27.6	0.17	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0612P4H001	12	10.8~13.2	0.52	6.24	17500	0.63	22.2	400		1.61	51
暂无	9WL0624P4S001	12	10.8~13.2	0.4	4.8	15500	0.56	19.7	310		1.24	47
暂无	9WL0624P4J001	24	14~27.6	0.26	6.24	17500	0.63	22.2	400		1.61	51
暂无	9WL0624P4H001	24	14~27.6	0.2	4.8	15500	0.56	19.7	310		1.24	47

PRODUCT PRESENTATION

SANYO DENKI San Ace 60W 9WPA0612P4H0011 Splash Proof Fan

1. Product Overview

The SANYO DENKI San Ace 60W 9WPA0612P4H0011 is a high-performance splash proof DC cooling fan designed for applications requiring reliable operation in harsh, water-exposed environments. As part of the San Ace 60W series, this 60×60×25mm fan features an IP68 rating, PWM speed control, and a pulse sensor, making it ideal for outdoor equipment, industrial automation, and other rugged cooling needs.

2. Core Specifications

表格

Parameter	Value
Model No.	9WPA0612P4H0011
Frame Size	60 × 60 × 25 mm
Rated Voltage	12 V DC
Operating Voltage Range	10.2 ~ 13.8 V DC
Rated Current	0.17 A
Rated Input	2.04 W
Rated Speed	5800 min⁻¹
Max. Airflow	0.73 m³/min (25.8 CFM)
Max. Static Pressure	83.4 Pa (0.33 inchH₂O)
Sound Pressure Level (SPL)	36 dB(A)
Operating Temperature	-20 ~ +70 °C
Expected Life	40000 h @ 60 °C (70000 h @ 40 °C)
Mass	110 g
IP Rating	IP68
PWM Control Function	Yes
Sensor Type	Pulse Sensor
Frame Material	Plastic
Ribbed	No

3. Key Features

✅ IP68 Splash & Dust Protection

The fan is certified to IP68 standards, providing complete protection against dust ingress and temporary immersion in water. This makes it suitable for use in environments exposed to splashing water, high humidity, or outdoor conditions, ensuring stable performance even in harsh industrial settings.

✅ PWM Speed Control

Equipped with a PWM control function, the fan allows external adjustment of rotational speed. This feature enables noise reduction at low loads and improved energy efficiency, extending the fan’s service life while meeting varying cooling demands.

✅ Built-in Pulse Sensor

The integrated pulse sensor provides real-time rotational speed feedback, enabling system monitoring and fault detection. This is critical for applications where cooling system reliability is essential, such as industrial automation and outdoor electronics.

✅ Long Operational Life

With a rated life of 40000 hours at 60 °C (70000 hours at 40 °C), the fan delivers long-term reliability. The robust design and high-quality components ensure consistent performance over extended periods, reducing maintenance costs.

✅ Compact Industrial Form Factor

The 60×60×25mm frame size offers a balance of airflow, static pressure, and compactness, making it easy to integrate into space-constrained industrial equipment without compromising cooling efficiency.

4. Typical Applications

Outdoor digital signage and kiosks
EV charging stations and power inverters
Industrial automation and control equipment
Marine and transportation electronics
Agricultural and food processing machinery
High-humidity and dust-prone industrial environments

5. Compliance & Certifications

Eco Products compliant
UL recognized
CSA certified
EN standards compliant
RoHS directive compliant
Splash Proof certified
