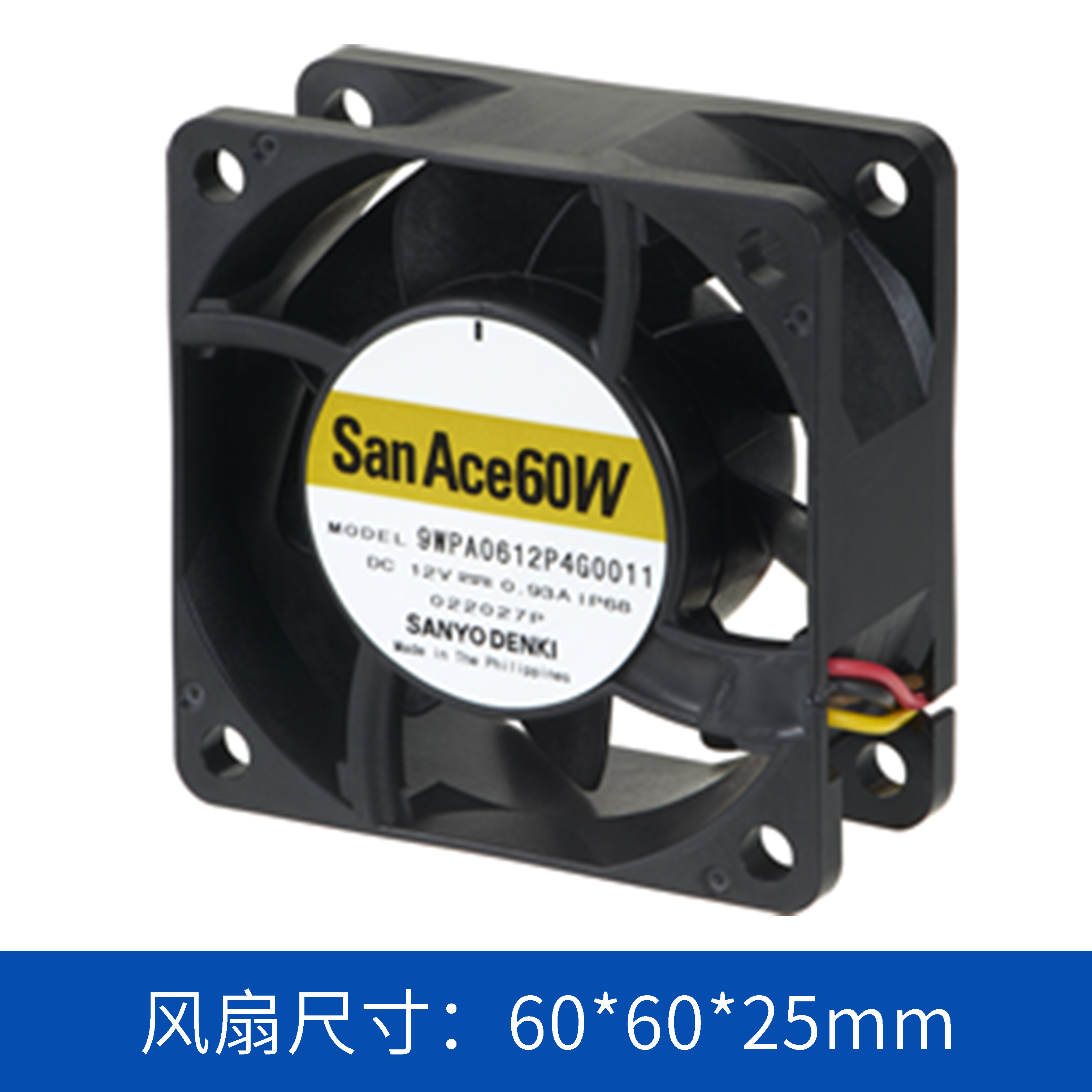

6025 12V Splash Proof Fan

9WPA0612M4001

Brand: SanAce (Japan sanyodenki)
Size: 60x60x25mm
Characteristics: IP68 Splash Proof Fan
Signal line: 4-wire PWM + FG
Product description: SANYO DENKI San Ace 60W 9WPA0612M4001 is a 60×60×25mm IP68 waterproof DC cooling fan with 12V rated voltage, 4000 RPM speed, 0.51 m³/min airflow, ideal for outdoor/harsh environment applications like
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承认书/规格书	型号	额定定压	电压范围	额定电流	额定功率	转速	最大风量		最大风压			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	㎥/min	CFM	Pa	mmH2O	INH2O	DB-A
暂无	9WPA0612P4G001	12	10.8~13.2	0.17	2	13700	0.38	13.4	210		0.84	44
暂无	9WPA0612P4G0011	24	14~27.6	0.09	2	13700	0.38	13.4	210		0.84	44
暂无	9WPA0612P4H001	12	10.8~13.2	0.075	0.9	8800	0.24	8.5	81		0.33	34
暂无	9WPA0612P4H0011	24	14~27.6	0.038	0.9	8800	0.24	8.5	81		0.33	34
暂无	9WPA0624P4G001	12	10.8~13.2	0.1	1.2	8000	0.225	8	65.7		0.264	33
暂无	9WPA0624P4G0011	12	10.8~13.2	0.06	0.72	6500	0.183	6.5	45.1		0.181	28
暂无	9WPA0612M4001	12	10.8~13.2	0.5	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0612M40011	12	10.8~13.2	0.5	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0624M4001	24	14~27.6	0.25	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0624M40011	24	14~27.6	0.25	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0624S4001	12	10.8~13.2	0.34	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WPA0624S40011	12	10.8~13.2	0.34	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0612P4S001	24	14~27.6	0.17	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0612P4J001	24	14~27.6	0.17	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0612P4H001	12	10.8~13.2	0.52	6.24	17500	0.63	22.2	400		1.61	51
暂无	9WL0624P4S001	12	10.8~13.2	0.4	4.8	15500	0.56	19.7	310		1.24	47
暂无	9WL0624P4J001	24	14~27.6	0.26	6.24	17500	0.63	22.2	400		1.61	51
暂无	9WL0624P4H001	24	14~27.6	0.2	4.8	15500	0.56	19.7	310		1.24	47

PRODUCT PRESENTATION

SANYO DENKI San Ace 60W Splash Proof Fan - 9WPA0612M4001

1. Product Overview

The SANYO DENKI 9WPA0612M4001 is a compact, high-performance splash-proof DC cooling fan from the San Ace 60W series, designed for reliable operation in harsh, water-exposed environments. Built with an IP68 ingress protection rating, this 60×60×25mm fan delivers consistent cooling performance while withstanding dust, splashes, and temporary immersion, making it ideal for outdoor and industrial applications where standard fans fail.

2. Key Specifications

表格

Parameter	Details
Model Number	9WPA0612M4001
Series	San Ace 60W Splash Proof Fan
Frame Size	60 × 60 × 25 mm
Rated Voltage	12 V DC
Operating Voltage Range	10.2 ~ 13.8 V DC
Rated Current	0.11 A
Rated Input Power	1.32 W
Rated Speed	4000 min⁻¹ (RPM)
Max. Airflow	0.51 m³/min (18 CFM)
Max. Static Pressure	39.7 Pa (0.16 inchH₂O)
Sound Pressure Level (SPL)	26 dB(A)
Operating Temperature	-20 ~ +70 °C
Expected Life	40,000 h @ 60 °C; 70,000 h @ 40 °C
IP Rating	IP68 (Dust-tight, protected against continuous immersion)
Sensor Type	Pulse sensor (speed monitoring)
PWM Control	No
Frame Material	Plastic
Mass	110 g
Compliance	UL, CSA, EN, RoHS, Eco Products certified
Special Features	Ribbed design, splash-proof construction

3. Core Features

3.1 Industry-Leading IP68 Protection

The fan’s IP68 rating ensures complete dust protection and resistance to continuous water immersion, making it suitable for environments exposed to rain, splashes, or high humidity. The internal winding and PCB are sealed with splash-resistant materials to prevent water damage.

3.2 Reliable Performance & Long Lifespan

With a rated speed of 4000 RPM and a long expected life of up to 70,000 hours at 40°C, the 9WPA0612M4001 delivers consistent airflow and pressure without frequent maintenance, reducing downtime in critical applications.

3.3 Compact & Versatile Design

The 60×60×25mm form factor fits into space-constrained equipment, while the ribbed frame enhances structural durability and vibration resistance. It supports standard 12V DC power systems and includes a pulse sensor for speed monitoring.

3.4 Compliance & Certifications

The fan meets global safety and environmental standards, including UL, CSA, EN, and RoHS directives, ensuring compatibility with international equipment designs.

4. Typical Applications

The 9WPA0612M4001 is engineered for use in demanding environments, including:

Photovoltaic (PV) inverters and solar power equipment
Electric Vehicle (EV) chargers and charging stations
Outdoor digital signage and display systems
Industrial automation equipment exposed to moisture/dust
Battery storage systems and telecom base stations
Plant factories and agricultural equipment
